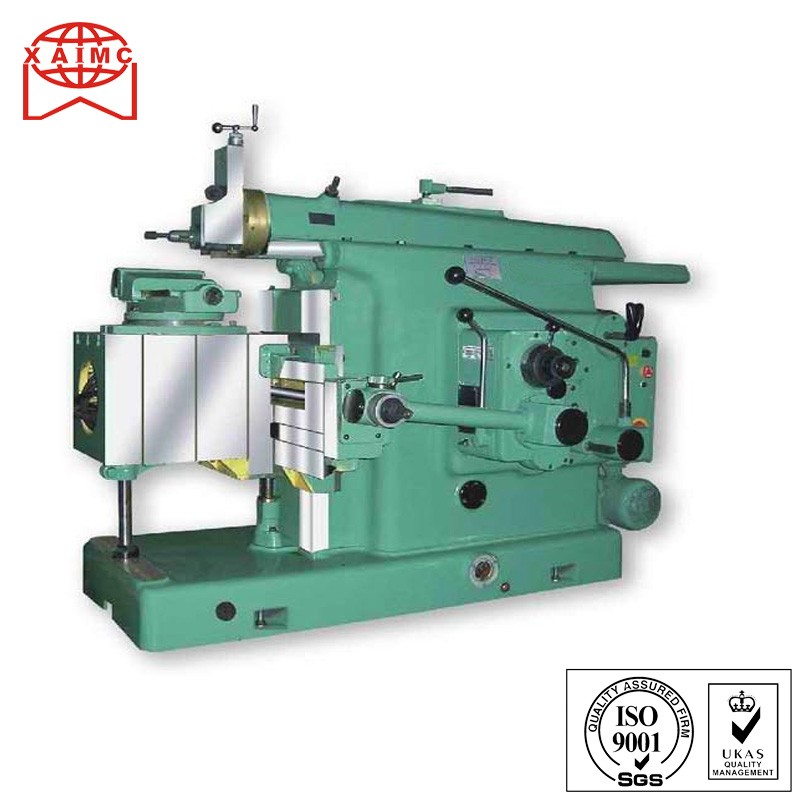

B6050 Metal Shaper Machine

Suitable for single piece or small batch production.
1.Multiple-disk clutch: carried out on the start and stop of the machine
2.crank connecting link: achieved in the reciprocation of the ram
3.table:an automatic mechanism for vertical horizontal and rotary feeding together with its safety device is provided on the table.
4.rapid motion device: there is also a rapid motion device for vertical horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.

Shaping Machine Factory Directly Metal Shaper Machine B6050

Product Description

China quality Shaping Machine Factory Directly Metal Shaper Machine B6050

Product main technical Specifications:

Model		BC6050	BC6066	BC6085
Maximum cutting length(mm)		500	660	850
Max.range horizontal movement of the table		500	660	710
Max.distance between the ram bottom and table		370	385	400
Max.length of the vertical movement of table		270	360	360
Dimensions of table top(L×W)		440×360	660X400	800X450
Max.stroke length of the toolhead		120	120	160
Max.swivel angle of the toolhead		±60°	±60°	±60°
Max.section of tool(W×T)(mm)		20×30	20×30	/
Number of ram reciprocation per minute		14-80	14-80	17-100
Range of table feed:	horizontal	0.2-0.25	0.4-5.0	0.25-3
	Vertical	0.08-1.00	0.08-1.00	0.12-1.5
Width of the T-slot(mm)		18	18	22
Power of the main motor		3	3	5.5
N.W/G.W(kg)		1650/1760	1800/1920	2940/3090
Overall dimensions(L×W×H)(mm)		2160×1070×1194	2357×1225×1480	2950x1325x1693

China quality Shaping Machine Factory Directly Metal Shaper Machine B6050
