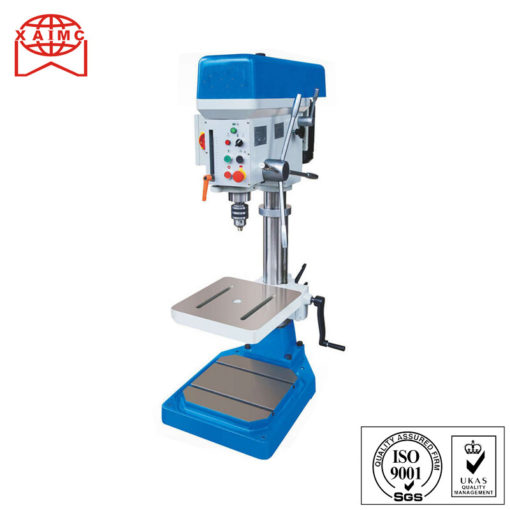

| MODEL | UNIT | Z4006G | Z4116G | Z4120G | Z4132G | Z5032G/Z5032GP |
| Max. Drilling capacity | mm | Φ6 | Φ16 | Φ20 | Φ31.75 | Φ31.75 |
| Max. tapping capacity (Cast iron/Steel) | mm | / | M12/M10 | M20/M16 | M24/M20 | M24/M20 |
| Diameter of column | mm | 55 | 70 | 85 | 100 | 100 |
| Spindle travel | mm | 65 | 100 | 135 | 150 | 150 |
| Distance spindle axis to column generating line | mm | 140 | 193 | 240 | 265 | 265 |
| Max. distance spindle nose to worktable | mm | / | 330 | 365 | 390 | 820 |
| Max. distance spindle nose to base | mm | 215 | 610 | 675 | 745 | 1235 |
| Spindle speeds range | r/min | 2000 ~ 12000 | 320 ~ 2730 | 320 ~ 1820 | 280 ~ 1875 | 280 ~ 1875 |
| Spindle taper | B10 | MT2 | MT2 | MT3 | MT3 | |
| Worktable size | mm | / | 265 x 285 | 300 x 320 | 380 x 400 | 380 x 400/390 x 390 |
| Power of motor | kw | 0.37 (2P) | 0.75 (4P) | 1.1 (6P) | 1.5 (6P) | 1.5 (6P) |
| Net Wight | kg | 55 | 145 | 170 | 225 | 310 |
| Packing dimension | cm | 64 x 35 x 58 | 85 x 54 x 128 | 99 x 56 x 140 | 104 x 64 x 151 | 104 x 64 x 205 |
