Bandsaw Machine
1.Gear Drive, 3 cutting Speed

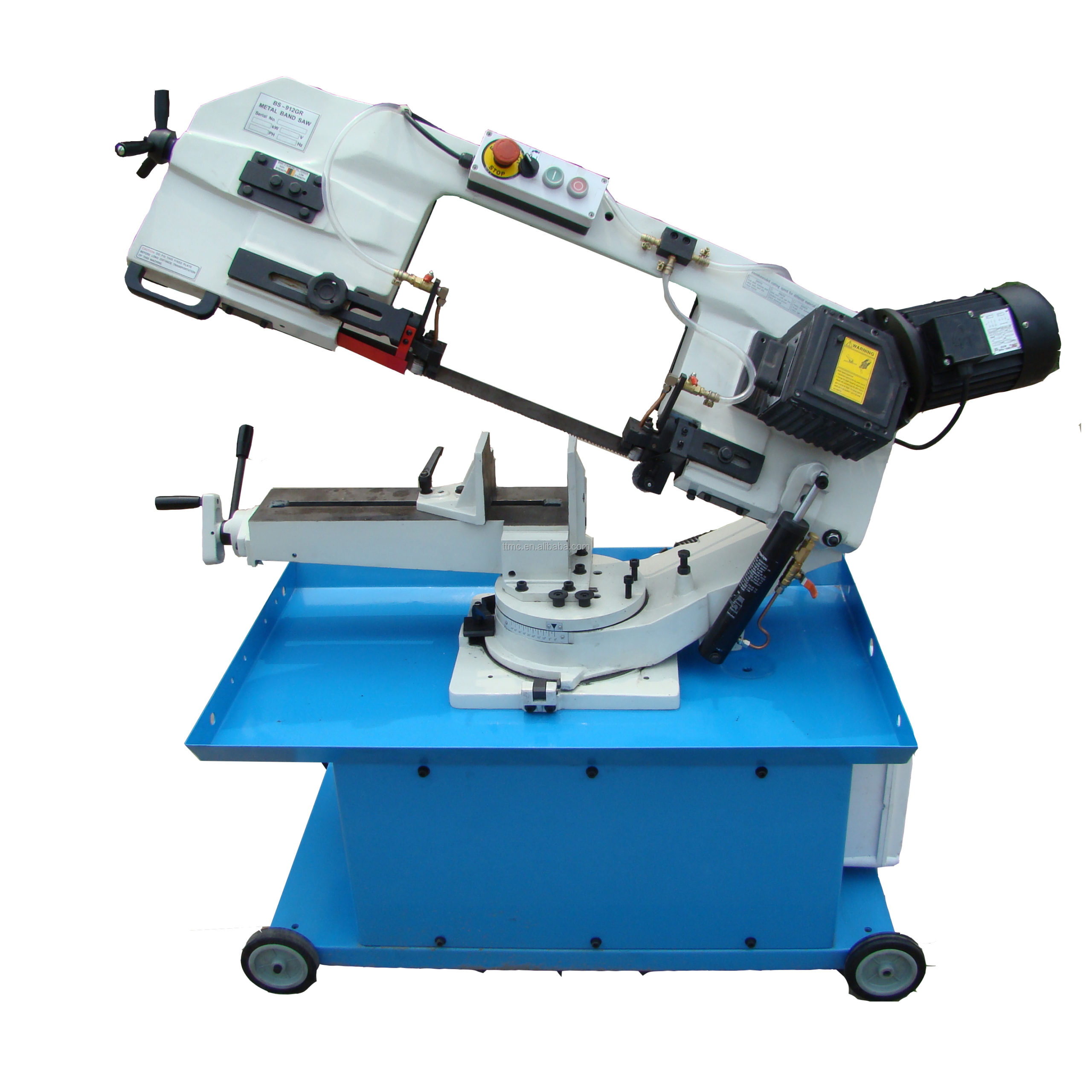

Horizontal Metal Cutting Bandsaw Machine
Bandsaw with Horizontal metal cutting is best for shaping the metal with different sizes. Given saw machine is made by highly skilled professionals with modern techniques and qualitative components.
We provide top quality, sturdy and compact bandsaw machine. Our tools ensure maximum safety and prevent accidents. The key features include higher cutting speed and better accuracy in our bandsaw tool. These tools are highly suitable for cutting long bars into different shapes.
Double Column Semi-Automatic Horizontal Bandsaw Machine
These are of Stress Relieved Fabricated Steel Structure, Hard Chrome Plated Ground Column, and Automatic Height Adjustment for Saw Frame, Variable Pressure Control for Cutting Feed and Auto Cutting Stop.
Our Bandsaw Machine stood best in all the considerable parameters.
MODEL | BS-712N | BS-712GR | BS-912B | BS-912GR | BS-1018B |
---|---|---|---|---|---|
Capacity Round @ 90° | Ø178mm | Ø178mm | Ø229mm | Ø229mm | Ø254mm |
Capacity Rectangular @ 90 | 178 X 305mm | 178 X 210mm | 178 X 305mm | 178 X 305mm | 127 X 457mm |
Capacity Round @ 45° | Ø127mm | Ø127mm | Ø150mm | Ø150mm | Ø150mm |
Capacity Rectangular @ 45° | 120 X 125mm | 85 X 140mm | 127 X 150mm | 127 X 150mm | 150 X 190mm |
Blade Size | 2362 x 19 x 0.9mm | 2362 x 19 x 0.9mm | 2655 x 27 x 0.9mm | 2655 x 27 x 0.9mm | 3280 x 27 x 0.9mm |
Blade Speed | 22, 34, 49, 64m/min. | 29, 59, 87m/min. | 26, 50, 73, 95m/min. | 31, 65, 95m/min. | 26, 50, 73, 95m/min. |
Drive | V-Belt | Gear | V-Belt | Gear | V-Belt |
Job Clamping Type | Manual | Manual | Manual | Manual | Manual |
Main Motor Power | 1.5HP | 1.5HP | 1.5HP | 1.5HP | 2.0HP |
Power Supply | 415V – 50Hz – 3Phase | 415V – 50Hz – 3Phase | 415V – 50Hz – 3Phase | 415V – 50Hz – 3Phase | 415V – 50Hz – 3Phase |
Packing Dimension | 1250 x 510 x 1150mm | 1320 x 770 x 1150mm | 1554 x 590 x 1150mm | 1600 x 600 x 1150mm | 1830 x 830 x 1150mm |
Net/Gross Weight | 145/178Kgs. | 175/197Kgs. | 230/260Kgs. | 220/260Kgs. | 310/385 |
