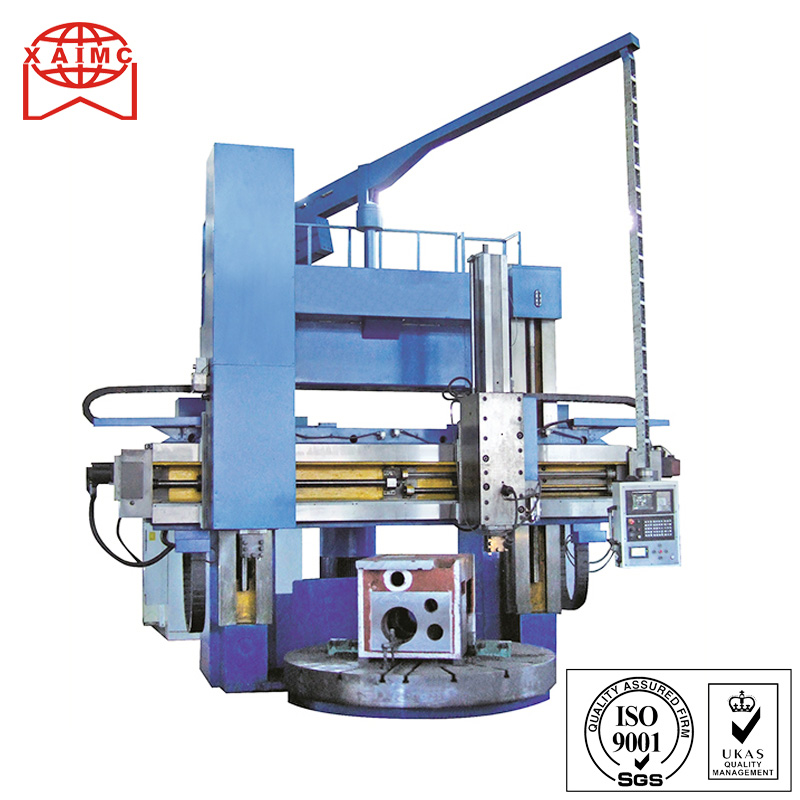

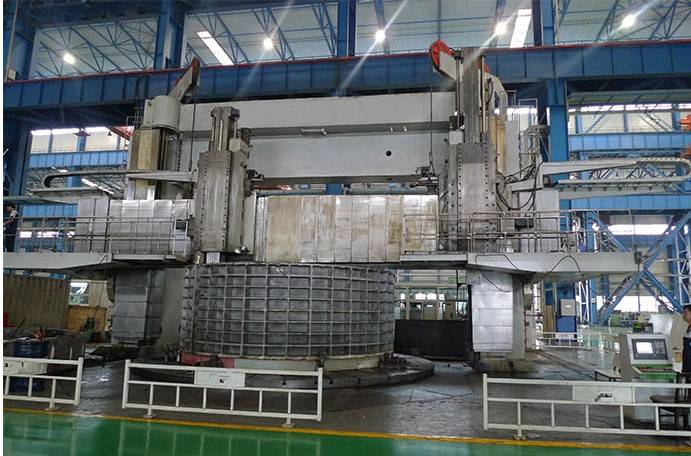

CK5225 / CK5231/ CK5240 Double Column Vertical CNC Lathe Machine
Feature:
1. This series machine is suitable for internal and external turning, internal and external tapering, facing, slotting, thread, contour surface turning (CNC machine) etc.
2. The spindle drive adopts servo motors, through 2 steps spindle speed changing unit, to make work table realize stepless speed regulation.
3. Work table spindle adopts short spindle and constant flow hydrostatic guide way, keep high centering accuracy, high rotating accuracy, big loading capacity and small deformation.
4. Feed system adopts AC servo motor drive leadscrew though gear box.
5. Tow axis feed system all adopts leadscrew, both ends fixed and prestretching, advanced high rigidity.
6. Machine adopts push button station, feed system configure handheld unit, easy to operate.
7. The configuration of spindle driver and feed system can be interchangeable with general type and CNC type.
1. This series machine is suitable for internal and external turning, internal and external tapering, facing, slotting, thread, contour surface turning (CNC machine) etc.
2. The spindle drive adopts servo motors, through 2 steps spindle speed changing unit, to make work table realize stepless speed regulation.
3. Work table spindle adopts short spindle and constant flow hydrostatic guide way, keep high centering accuracy, high rotating accuracy, big loading capacity and small deformation.
4. Feed system adopts AC servo motor drive leadscrew though gear box.
5. Tow axis feed system all adopts leadscrew, both ends fixed and prestretching, advanced high rigidity.
6. Machine adopts push button station, feed system configure handheld unit, easy to operate.
7. The configuration of spindle driver and feed system can be interchangeable with general type and CNC type.
8. Electrical Japanese Omron PLC control, electrical parts are made of ultra-high-quality components, specifications (CE standard) wiring technology, electrical machine with ultra-high reliability.
9. Complete fitting configuration, users only need to prepare tools and gauges can be immediately put into production. Sales service
9. Complete fitting configuration, users only need to prepare tools and gauges can be immediately put into production. Sales service
(pre-sale, sale, sale, installation, commissioning, training, warranty, etc.), 1 year warranty.
Product Description
|
Specifications
|
Unit
|
CK5225
|
CK5231
|
CK5240Q
|
CK5240
|
|
Max.turning diameter
|
mm
|
2500
|
3150
|
4000
|
4000
|
|
Max. height of workpiece
|
mm
|
1600/2000/2500
|
1600/2000/2500
|
1600/2000/2500
|
1600/2000/2500
|
|
Max. weight of workpiece
|
T
|
10/20
|
10/20
|
10/20
|
32
|
|
Worktable diameter
|
mm
|
2250
|
2830
|
2830/3150
|
3200/3600
|
|
Range of table speeds
|
r/min
|
2-63
|
2-63
|
2-63
|
2-63
|
|
Steps
|
|
16
|
16
|
16
|
16
|
|
Max torque of work table
|
KN.m
|
63
|
63
|
63
|
100
|
|
Rapid traverse of rail head
|
mm/min
|
4000
|
4000
|
4000
|
4000
|
|
Ram vertical travel of right railhead
|
Kn
|
35
|
35
|
35
|
40
|
|
Ram vertical travel of left railhead
|
kn
|
30
|
30
|
30
|
30
|
|
Range cutting force of right railhead
|
mm/min
|
1-50
|
1-50
|
1-50
|
1-50
|
|
Range cutting force of right railhead
|
mm/min
|
0.1-1000
|
0.1-1000
|
0.1-1000
|
0.1-1000
|
|
Travel of arm
|
mm
|
1000
|
1000
|
1000
|
1250
|
|
Section of arm
|
mm
|
255×200
|
255×200
|
255×200
|
240×240
|
|
Swivel of left and right railhead
|
°
|
±30°
|
±30°
|
±30°
|
±30°
|
|
Section of tool
|
mm
|
40×50
|
40×50
|
40×50
|
50×50
|
|
Power of main motor
|
Kw
|
55
|
55
|
55
|
75
|
|
Overall dimensions
|
cm
|
569×470×480/520
|
605×440×493/533
|
690×510×480/520
|
690×510×480/520
|
