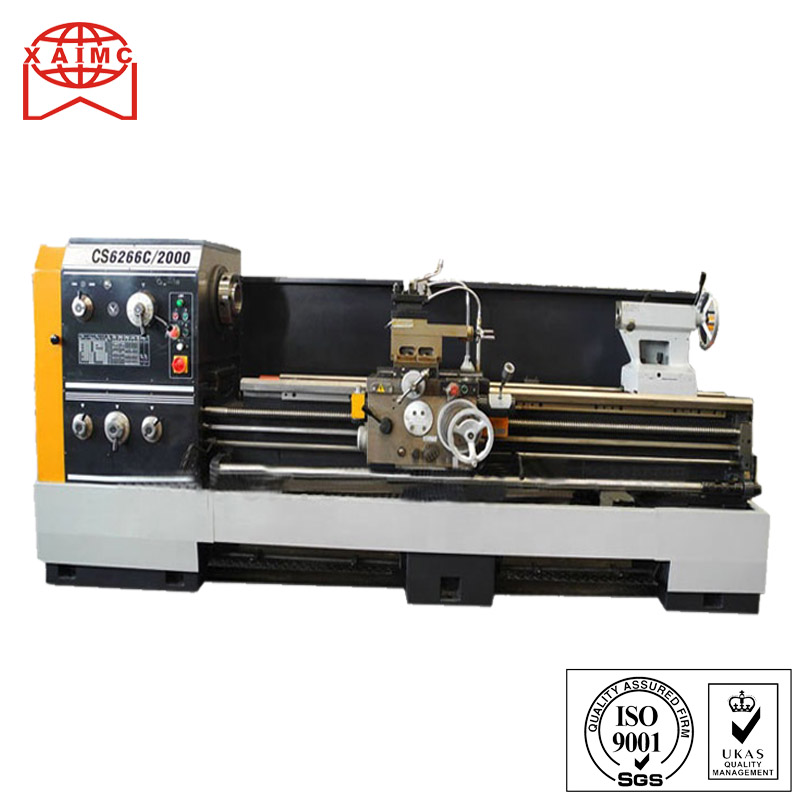

CS6240 series universal lathes
Introduction
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Specifications
|
Item |
Unit |
Parameter |
|||||||
|
CS6240 |
CS6250/B |
CS6266/B |
CQ6280B |
CS6250C |
CS6266C |
CQ6280C |
|||
|
Capacity |
Max swing over bed |
mm |
φ400 |
φ500 |
φ660 |
φ800 |
φ500 |
φ660 |
φ800 |
| Max swing in gap |
mm |
φ630 |
φ710 |
φ870 |
φ1000 |
φ710 |
φ870 |
φ1000 |
|
| Effective length in gap |
mm |
240 |
|||||||
| Max swing over slide |
mm |
φ220 |
φ300 |
φ420 |
φ560 |
φ300 |
φ420 |
φ560 |
|
| Max workpiece length |
mm |
750/1000/1500/2000/3000 | 1000/1500/2000/3000 | 2000/3000 | 1000/1500/2000/3000 | 2000/3000 | |||
|
Spindle |
Spindle thru-hole |
mm |
φ52 |
φ82 |
φ82 |
φ105 |
|||
| Spindle nose |
|
CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type |
|||||||
| Spindle speed |
r/min |
24 step 9-1600 |
24 step 8-1400 |
12 step 36-1600 |
12 step 30-1400 |
||||
| Spindle motor |
kW |
7.5 |
|||||||
|
Tailstock |
Quill dia./travel |
mm |
φ75/150 |
φ90/150 |
φ75/150 |
φ90/150 |
|||
| Taper of center |
MT |
5 |
|||||||
|
Tool post |
Number of station/
Tool section |
|
4/25X25 |
||||||
|
Feed |
Max X-axis travel |
mm |
145 |
||||||
| Max Z-axis travel |
m/min |
320 |
310 |
320 |
|||||
| X-axis feed |
mm/r |
93 sorts 0.028-6.43 |
65 sorts 0.063-2.52 |
||||||
| Z-axis feed Z-axis feed |
mm/r |
93 sorts 0.012-2.73 |
65 sorts 0.027-1.07 |
||||||
| Metric thread |
mm |
48 sorts 0.5-224 |
22 sorts 1-14 |
||||||
| Inch thread |
t.p.i |
48 sorts 72-1/4 |
25 sorts 28-2 |
||||||
| Module thread |
πmm |
42 sorts 0.5-112 | 18 sorts 0.5-7 | ||||||
| DP thread |
t.p.i. π |
42 sorts 56-1/4 |
24 sorts 56-4 |
||||||
|
Others |
Coolant pump motor |
kW |
0.06 |
||||||
|
Machine length |
mm |
2382/2632/3132/3632/4632 |
2632/3132/3632/4632 |
3365/4365 |
2632/3132/3632/4632 |
3365/4365 |
|||
| Machine width |
mm |
975 |
1050 |
1340 |
975 |
1340 |
|||
| Machine height |
mm |
1230 |
1350 |
1490 |
1270 |
1450 |
1490 |
||
| Machine weight |
kg |
1795/2050/2250/2450/2850 |
2050/2100/2300/2500/2900 |
2400/2600/2800/3000 |
3300/3700 |
2100/2300/2500/2900 |
2200/2400/2600/3000 |
||
