CW61125N/CW61140N/CW61160N/CW61180N/CW61200N

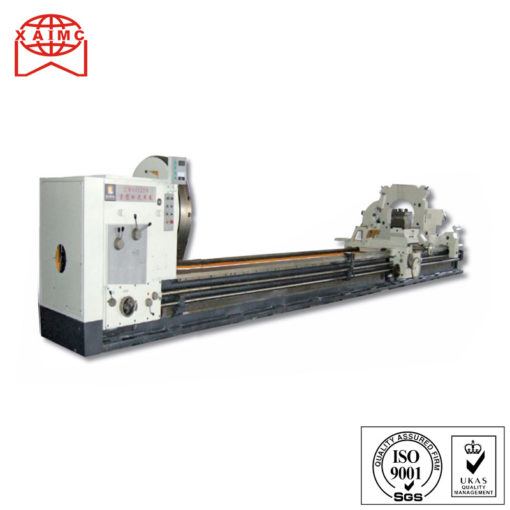

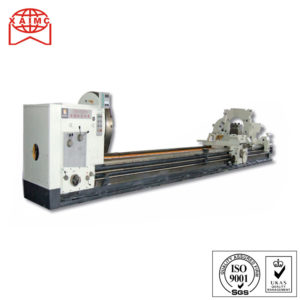

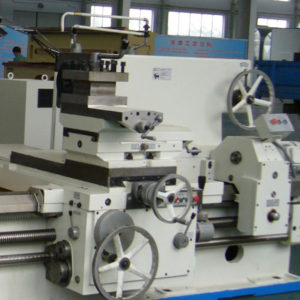

Heavy Duty Turning Lathe Machine
HEAVY DUTY LATHE MACHINE FEATURES:
These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu-ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning.They are characteristics of power, high spindle speed, highrigidity. The various ferrous and non ferrous metals parts may be turned through the heavy cutting by carbon alloytools.
|
Model
|
CW61125N
|
CW61140N
|
CW61160N
|
CW61180N
|
CW61200N
|
|
|
CAPACITY |
Max.swing diameter over bed
|
Φ1300mm
|
Φ1500mm
|
Φ1700mm
|
Φ1900mm
|
Φ2100mm
|
|
Max.swing diameter over carriage
|
Φ900mm
|
Φ1100mm
|
Φ1300mm
|
Φ1500mm
|
Φ1700mm
|
|
|
Width of bed
|
1100mm
|
|||||
|
Max. Length of work piece
|
1000-16000mm
|
|||||
|
The bed saddle longitudinal maximum stroke
|
1000-16000mm
|
|||||
|
The top two largest bearing
|
25t
|
|||||
|
SPINDLE |
Spindle nose
|
1:30
|
||||
|
Spindle bore diameters
|
Φ100mm
|
|||||
|
Taper of spindle bore
|
Metric No.140
|
|||||
|
Range of spindle speed
|
2-200(Manual fourth gear)
|
|||||
|
Spindle front bearing inner diameter
|
ф280mm
|
|||||
|
FEEDS |
Longitudinal feeds range
|
0.1-12r/min 56Kinds
|
||||
|
Transversal feeds range
|
0.05-6mm/r 56Kinds
|
|||||
|
Metric treads range
|
1-120mm 44Kinds
|
|||||
|
Inch thread range
|
3/8-28TPI 31Kinds
|
|||||
|
Moudle threads range
|
0.5-60mm 45Kinds
|
|||||
|
Pitch threads range
|
1-56TPI 25Kinds
|
|||||
|
TAILSTOCK
|
Taper of tailstock sleeve
|
1:7
|
||||
|
Travel of tailstock sleeve
|
300mm
|
|||||
|
Diameters of tailstock sleeve
|
ф280mm
|
|||||
|
MOTORS
|
Main motor power
|
DC55kw
|
||||
|
Rapid motor power
|
1.5kw
|
|||||
|
Coolant pump power
|
0.125kw
|
|||||
|
WEIGHT
|
Work piece length 5000mm(sample)
|
24470kg
|
25160kg
|
25800kg
|
26220kg
|
26890kg
|
|
For every 1 meter increase or decrease, the weight increases or decreases by 1050kg
|
||||||
|
1 |
4-Jaw Chuck, Diameter of 1250/1400/1600 mm, 1 Set |
|
2 |
Steady Rest, Range 120 To 470 mm,400 To 700 mm, 1 Set(2-8m); 2 Sets (9-12m); 3 Sets(13-16m) |
|
3 |
Follow Rest, (for more than 2m), 1 Set |
|
4 |
Morse 6# centers, 1 Set |
|
5 |
Metric 80# centers |
|
6 |
Center Sleeve, 1 Set |
|
7 |
Tools,1 Set |
|
8 |
Foundation screws,1Set |

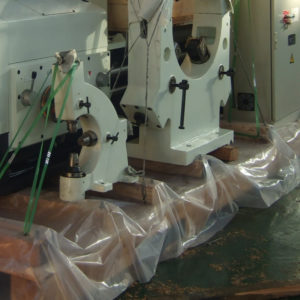

Packaging for Heavy Duty Lathe Machine
The heavy duty lathe will be packaged in wooden cases.
