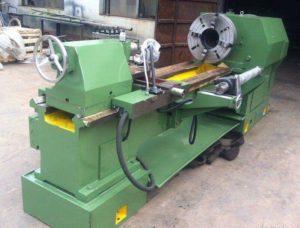

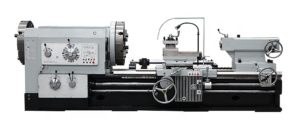

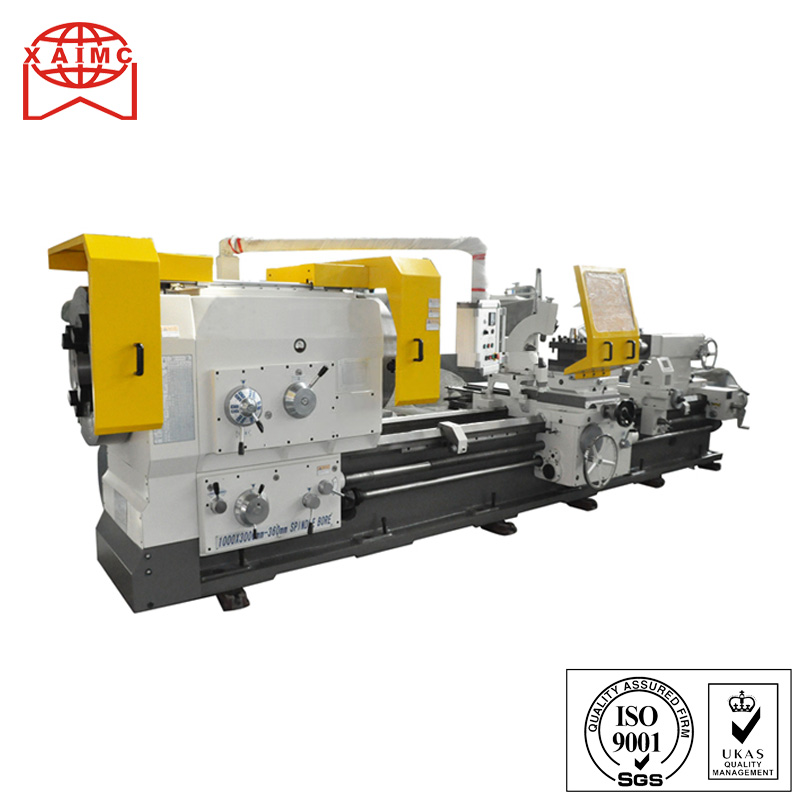

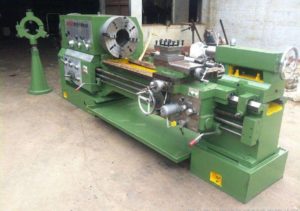

CW6636 Universal Horizontal Pipe Threading Lathe Pipe Thread Lathe Machine
Characteristic
This series lathes are chiefly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various kind of threads cutting. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
The product is widely used in machinery manufacturing, petroleum, chemical industry, coal, geological exploration, urban water supply and drainage and other industries.
Specifcation
|
Nanme Content
|
CW6636
|
CKW6646
|
CKW6663
|
Q1327
|
||
|
Max.swing over bed
|
Φ1000mm
|
Φ1200mm
|
Φ1400mm
|
Φ800mm
|
||
|
Max.swing over carriage
|
Φ640mm
|
Φ800mm
|
Φ1100mm
|
Φ520mm
|
||
|
Spindle bore
|
Φ360mm(14″)
|
Φ460mm(18″)
|
Φ635mm(25″)
|
Φ280mm
|
||
|
Range of spindle speed
|
6.3~315rpn
|
6.3~315rpm
|
5~250rpm
|
7.7~230rpm
|
||
|
Chuck diameter (front&rear)
|
Φ1000mm
|
Φ1000mm
|
Φ1250mm
|
Φ500mm
|
||
|
Min.clamping diameter of chuck
|
Φ240
|
Φ260mm
|
Φ500
|
Φ300
|
||
|
Metric thread(pitch)
|
kind
|
range
|
(56)44,1~120mm
|
2~6(4)
|
||
|
Whitworth
|
kind
|
range
|
37,30~11/8teeth
|
4~12(6)
|
||
|
Module threads
|
kind
|
range
|
46,0.5~60mm
|
/
|
||
|
Diametrical thread
|
kind
|
range
|
46,0.5~60D.P.
|
/
|
||
|
Diameter of tailstock sleeve
|
Φ160mm
|
Φ100mm
|
||||
|
Power of main motor
|
22KW
|
30KW
|
15kw
|
|||
Standard accessories and Optional Accessories
|
4-jaw chuck
|
4-jaw chuc Φ1250mm Φ1400mm
|
|
Centre
|
Face plate Φ1600mm
|
|
Centre sleeve
|
S t e ady r e s t Φ5 0 -Φ4 7 0mm, Φ5 0 -Φ5 9 0mm,
|
|
Lighting unit
|
Φ200-Φ900, Φ220-Φ630mm Follower rest Φ50-Φ220mm
|
|
Cooling unit
|
Roller supprter Φ620-1100, Φ850-1280mm
|
|
Special tools
|
Taper turning attachment I=800 or 1500mm
|
|
–
|
Digital-display unit
|
|
–
|
Grinding head
|
|
–
|
Milling head
|
|
–
|
Boring device
|
