D7135 CNC electric discharge
Product Overview

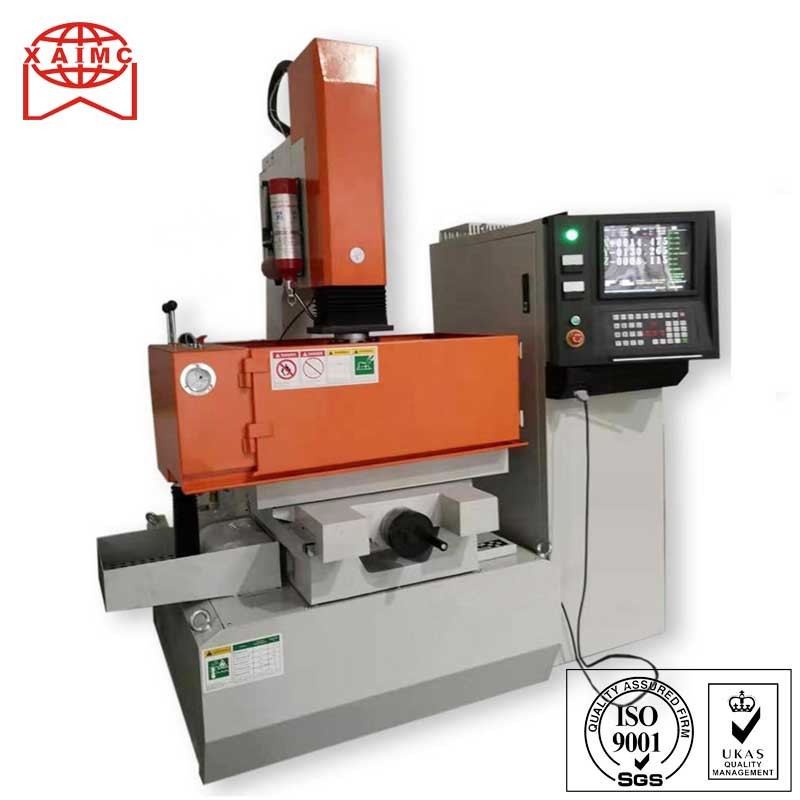

CNC EDM EROSION D7135
1.The machine is designed by special CAD software, in good structure and high precision, and has reasonable back-oil groove to insure clean and beautiful machine. 2. Principal axis adopt high precision DC servomotor to insure high quality and long machine life. 3. Principal axis adopt precision screw (made in Taiwan), lubrication adopt spindle box lubricate, without noise, without high temperature, less friction and high precision. 4. X,Y axis adopt high precision repressed bearing working in high precision ball screw,with good rigidity and portability operation. 5. Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose process that the workpiece is not submerged in oil. 6. It suits to process cavity, hole and special shape parts in copper, plumbago, steel.
|
CODE
|
ITEM
|
DETAILS
|
|
|
1
|
WORKTABLE（WIDTH×LENGTH）
|
mm
|
640*350
|
|
2
|
CNC TYPE
|
||
|
3
|
C-TEK SOFTWARE AND MODULE
|
||
|
4
|
MAX.LOAD BEARING OF WORKTABLE
|
kg
|
350
|
|
TRAVEL
|
|||
|
5
|
X AXIS
|
mm
|
350
|
|
6
|
Y AXIS
|
mm
|
250
|
|
7
|
Z AXIS
|
mm
|
180
|
|
8
|
WORKING TABLE TO ELECTRODE MIN/MAX DISTANCE
|
mm
|
200-560
|
|
STRUCTURE INDEX
|
|||
|
9
|
DISPLAY METHOD
|
15” TFT-LCD
|
|
|
10
|
WORKING TANK INNER SIZE
|
mm
|
900 x 550 x 390
|
|
11
|
VERTICAL CONTROLLER WEIGHT
|
kgs
|
200
|
|
POWER SOURCE
|
|||
|
12
|
MIN. Electrode Consumption
|
<0.2%
|
|
|
13
|
WORKING CURRENT
|
A
|
30/50
|
|
14
|
MIN. DRIVING UNIT
|
um
|
5
|
|
15
|
POWER REQUIREMENT
|
380/415 V, 50/60 Hz for three-phase
|
|
|
ENVIRONMENTAL REQUIREMENT
|
|||
|
16
|
ENVIRONMENTAL TEMPERATURE REQUIREMENT
|
0℃～40℃
|
|
|
17
|
RELATIVE HUMIDITY
|
20%～80%
|
|
|
MACHINE SIZE
|
|||
|
18
|
MACHINE DIMENSION
|
mm
|
1350*1150*2150
|
|
19
|
MACHINE WEIGHT
|
kgs
|
1250
|
|
ACCURACY
|
|||
|
20
|
POSITIONING ACCURACY
|
mm
|
<0.005
|
|
21
|
REPOSITIONING ACCURACY
|
mm
|
<0.005
|
|
22
|
MAX WORKING SURFACE ROUGHNESS
|
um
|
Ra<0.2
|
|
23
|
MAX. WORKING EFFICIENCY
|
m3/min
|
360/550
|
Machine Details
|
EDM TECHNOLOGY
|
||
|
1
|
PULSE GENERATOR
|
BUILT-IN
|
|
2
|
DRIVING SYSTEM
|
FULL DIGITAL DC SERVO DRIVE
MILITARY CLASS |
|
3
|
PROGRAM SYSTEM
|
BUILT-IN EXPERT DATABASE
FLEXIBLE AUTOMATIC PROGRAM SYSTEM |
|
4
|
BUILT-IN EXPERT ELECTRICAL DISCHARGING CIRCUIT
|
COPPER ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
|
TUNGSTEN COPPER ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
GRAPHITE ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
TUNGSTEN STEEL ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
BERYLLIUM COPPER ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
STEEL TO STEEL ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
HARD ALLOY ELECTRODE PROCESSING CIRCUIT AND EXPERT DATABASE
|
||
|
5
|
EDM PROTECTION CIRCUIT
|
FIRE ALARM DETECTION CIRCUIT
|
|
FLUID LEVEL DETECTION CIRCUIT
|
||
|
POWER CUT PROTECTION CIRCUIT
|
||
|
POWER CLUTTER RESTRAIN CIRCUIT
|
||
|
DATA INPUT OUTPUT
|
||
|
6
|
SOFTWARE
|
BUIT-IN EXPERT DATABASE WILL BE AT OUR OPERATING MANUALS
|
|
7
|
OPTICAL MOUSE-USB
|
|
|
8
|
KEYBOARD:
|
STANDARD ASCII KEYBOARD APPLICABLE
|
|
9
|
USB PORTS
|
02 NUMBERS
|
Any other specific accessories you want to change, kindly contact with us directly. We also can supply following service if you need.
1. Customize your machine shield color.
2. Supply the fixture scheme for your work piece.
3. Supply the processing beat scheme for your work piece.
4. Supply the tool selection scheme.
5. Offer the machine frame or other main parts separately
1. Customize your machine shield color.
2. Supply the fixture scheme for your work piece.
3. Supply the processing beat scheme for your work piece.
4. Supply the tool selection scheme.
5. Offer the machine frame or other main parts separately
Cooperative Manufacturers
The core part of the product adopts the world advanced technology to ensure high precision, high performance, high light and independent programming to ensure the stability of the process
SALES AND SERVICE NETWORK
Every year, we visit a large number of new and old products from Mexico, Russia, India and other countries. High quality service,first-class technology to ensure that customers more trust, more efficient use of this product.
This product can be customized, optional, until you are satisfied with our delivery, welcome to your arrival.
Sample Workpiece
