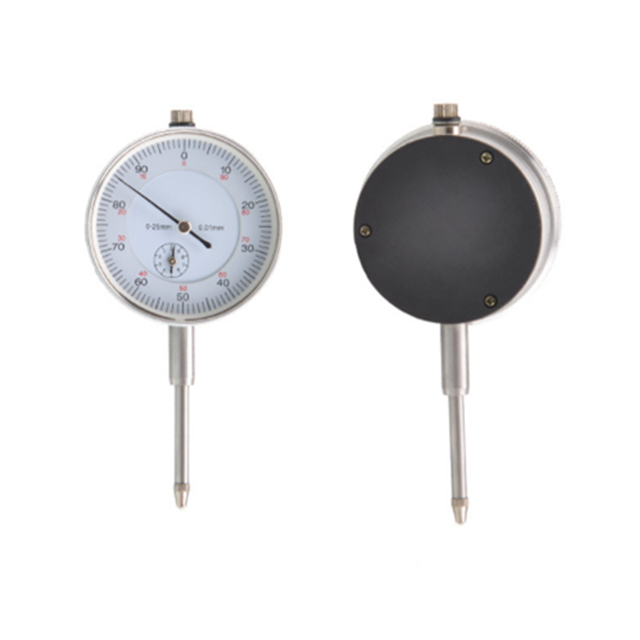

Dial Indicator dial gauge indicator

high accuracy inch and mm Dial Indicator dial gauge indicator 0-10MM dial indicator with magnetic stand

1.Steel -harden-tipped contact point for excellent durability.

2.Changeable anvisils for wide measuring ranges.

3.Equitpped with dial indicator.

4.The length of L can be changed according to customer’s requirement.

5.For internal measurement

6.With protective cover

7.Hardened contact point

8.Changeable anvils for wide measuring range

9.With dial indicator included

Technical Parameters of  Dial bore gauge  Indicator measuring diameter instrument

Structure of   Dial bore gauge  Indicator measuring diameter instrument

Details of  Dial bore gauge  Indicator measuring diameter instrument

Our Dial Bore Gauge for Small Holes has a measurement range of  3 to 4 mm and is accurate to + or – 0.005 mm. It is precise to 0.01 mm and the outside diameter of the stem is 8 mm. This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points offer extended wear and improved abrasion resistance. A rugged cover protects the dial indicator.Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.
