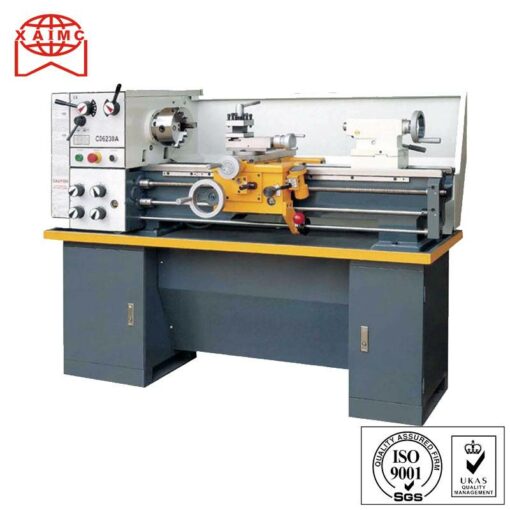

Engine lathe Machine C0630A

Engine lathe Machine C0632A

Lathe Feature

Precision ground and supersonic frequency hardened bed ways.

The spindle is supported with precision roller bearings.

Headstock gears are made of high quality steel, ground and hardened.

Spindle speed range 70-2000RPM.

Sealed and easy operating feed box has various feeds and thread cutting functions.

Category: Turning Tag: Engine lathe Machine

Description

Engine lathe Machine C0630A

Product Feature

1) Precision ground and supersonic frequency hardened bed ways
2) The spindle is supported with precision roller bearings
3) Headstock gears are made of high quality steel, ground and hardened
4) Spindle speed range 70-2000RPM
5) Sealed and easy operating feed box has various feeds and thread cutting functions.

Standard Accessories

160mm 3-jaw chuck

200mm 4-jaw chuck

300mm face plate
4-way tool post

Manual tailstock

Steady rest

Follow rest

Standard Accessories

Lubrication system

Coolant system

Foot break

Halogen work lamp

Threading dial

Spindle center, live center

Tool box and adjusting tools

Optional Accessories

Drive plate

Chuck cover

Tool post cover

Leadscrew cover

Tapper attachment

Quick change tool post

Digital readout

Bench lathe C0632A
CAPACITY		SPINDLE
Max.swing over bed	300mm (13″)	Spindle bore	38mm
Max.swing over carriage	198mm	Taper bore of spindle	M.T.NO.5
Max.swing over gap	476mm	Steps of spindle speed	8
Width of bed	186mm	Range of spindle speed	70~2000rpm
Max.length of	1000mm	Spindle nose	D4
THREADING		FEED
Metric thread	0.45-10mm/ 27	Range of longitudinal feeds	0.0026-0.040in/r (0.067~1.019mm/r)
Inch thread	3-1 /2~80T.P.I/36 kinds	Range of cross feeds	0.0009-0.0138in/r (0.018~0.275mm/r)
TAILSTOCK		OTHERS
Travel of tailstock quill	95mm	Power of main motor	2HP(1.5kw)
Taper bore of tailstock quill	M.T.NO.3	Net weight	510kg
