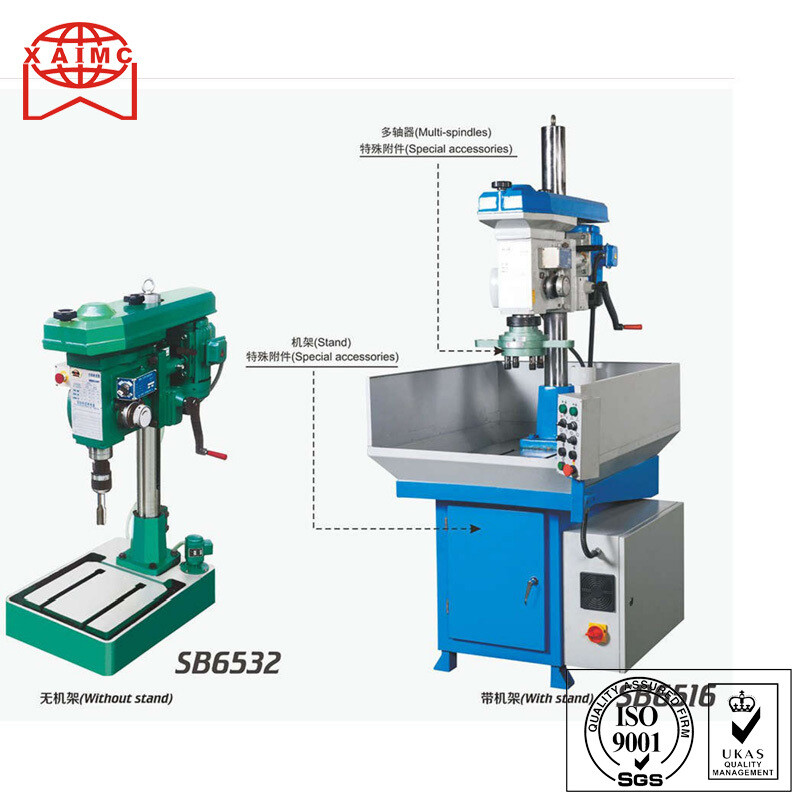

Gear type teeth distance tapping machine SB6516, SB6532 & SB6532A

MODEL	UNIT	SB6516	SB6532	SB6532A
Max. tapping capacity	mm	M16	M32	M32
Diameter of column	mm	85	95	/
Spindle travel		65	65	65
Distance spindle axis to column generating line	mm	257.5	252.5	/
Max. Distance spindle nose to base	mm	670	600	/
Spindle taper		MT3	MT3	MT3
Spindle speeds	r/min	250, 400, 590	6P Motor: 80,150,280 4P Motor: 120,220,420	6P Motor: 80,150,280 4P Motor: 120,220,420
Spindle speeds series		3	3	3
Dimension of base	mm	350 x 350	690 x 500	/
Spindle head travel		405	450	/
Overall height	mm	1110	1165	/
Power of main motor	kw	1.5	1.5(6P)/2.2(4P)	1.5(6P)/2.2(4P)
Auto-feeding thread pitch for which suits machine		1.0/1.25/1.5/1.75/2.0mm 19/18/16/14/13/12/11/10/9/8/7TPI	1.25/1.5/1.75/2.0/2.5/3.0/3.5mm 19/18/16/14/13/12/11/10/9/8/7TPI
Gross / Net Wight	kg	Without stand 280 / 300	Without stand: 400/350 With stand: 650/600	165 / 130
Packing dimension	mm	Without stand 106 x 64 x 132	Without stand 102 x 62 x 135 With stand 152 x 112 x 230	56 x 53 x 70
