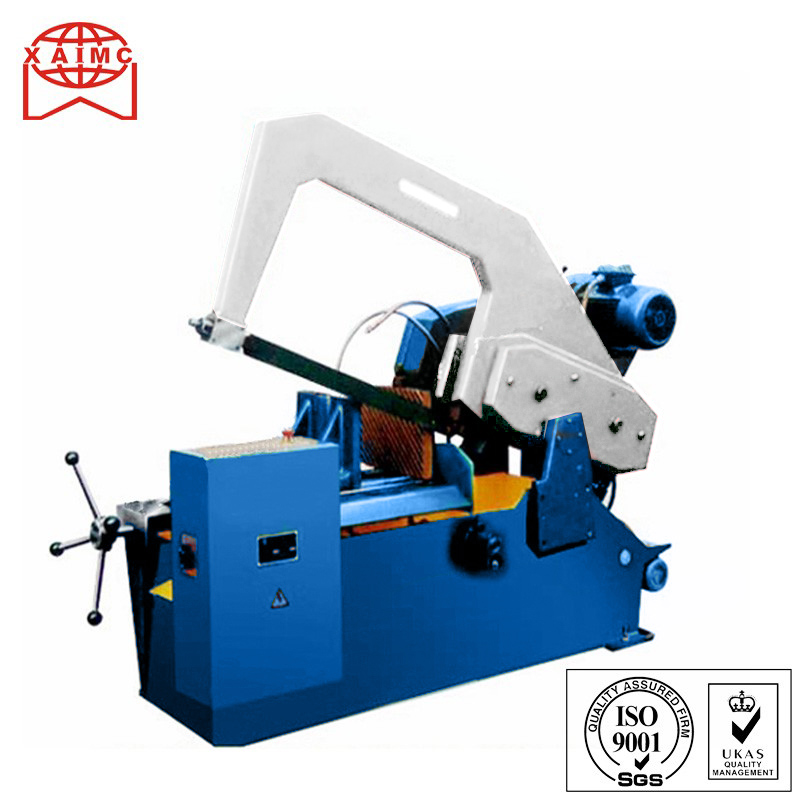

Hack Sawing Machine GL7132 GL7140 GL7150
HACK SAW MACHINE FEATURES:
1, hydraulic drive, simple operation, easy maintenance.
2, in addition to clamping feed, the cutting process automation, and equipped with a security guarantee device.
|
MODEL
|
GL7132
|
GL7140
|
GL7150
|
|
Cutting capacity Rounds
|
Ø320mm
|
Ø400mm
|
Ø500mm
|
|
Rounds
|
320x240mm
|
400x240mm
|
500x280mm
|
|
Squares
|
290x290mm
|
330x330mm
|
400x400mm
|
|
Oblique saw
|
45O(Dmax=220)
|
45O(Dmax=250)
|
45O(Dmax=300)
|
|
Frequency of sawing bow reciprocation
|
34:60:84min-1
|
34:60:84min-1
|
34:60:84min-1
|
|
Saw size
|
600x50x2.5mm
|
650x50x2.5mm
|
750x50x2.5mm
|
|
Motor power
|
3.44Kw
|
4.34Kw
|
4.34Kw
|
|
Overall dimension (LxWxH)
|
1940x835x1345mm
|
1990x835x1345mm
|
2090x1040x1375mm
|
|
Machine weight
|
1100kgs
|
1200kgs
|
1450kgs
|
