Heavy Duty Turning Lathe Machine CW61125H

HEAVY DUTY LATHE MACHINE FEATURES:
These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu-ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning.They are characteristics of power, high spindle speed, highrigidity. The various ferrous and non ferrous metals parts may be turned through the heavy cutting by carbon alloytools.

5. OEM services provided.

6. After-Sale services Provided.

Category: Turning Tag: Heavy Duty Turning Lathe Machine

Description

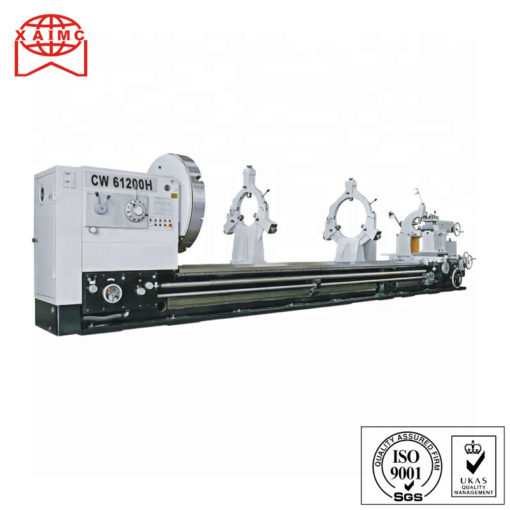

CW61125H/1 CW61140H/1 CW61160H/1 CW61180H/1 CW61200H/1 Heavy Duty Turning Lathe Machine

Product Description

Main Specifications of Heavy Duty Lathe Machine

Model		CW61125H/1	CW61140H/1	CW61160H/1	CW61180H/1	CW61200H/1
CAPACITY	Max.swing diameter over bed	1290mm	1440mm	1640mm	1840mm	2040mm
	Max.swing diameter over carriage	1750mm	1900mm	2100mm	2300mm	2400mm
	Max. Swing diameters on gap	900mm	1050mm	1250mm	1450mm	1650mm
	Width of bed	1100mm
	Max. Length of work piece	1000-16000mm
	The top two largest bearing	15t
SPINDLE	Spindle nose	1:30
	Spindle bore diameters	130mm
	Taper of spindle bore	Metric No.140
	Range of spindle speed	3.15-315r/min 21Kinds 2.9-290r/min 12Kinds
	Spindle front bearing inner diameter	240mm
TAILSTOCK	Taper of tailstock sleeve	Metric No.80
	Travel of tailstock sleeve	300mm
	Diameters of tailstock sleeve	260mm
MOTORS	Main motor power	30kw
	Rapid motor power	1.5kw
	Coolant pump power	0.125kw
WEIGHT	Work piece length 5000mm	21170kg	21860kg	22500kg	22920kg	23590kg

CW61125H/1 CW61140H/1 CW61160H/1 CW61180H/1 CW61200H/1 Heavy Duty Turning Lathe Machine

Standard Accessories of Heavy Duty Lathe Machine

4-Jaw Chuck, Diameter of 1250 mm, 1400mm,1600mm,1 Set
Steady Rest, Range 120 To 480 mm, 1 Set(2-8m); 2Sets (9-12m); 3Sets(13-16m)
Follow Rest, (for more than 2m), 1 Set
Morse 6# centers, 1 Set Metric 80# centers
Center Sleeve, 1 Set
Tools,1 Set
Foundation screws,1Set

Packaging & Shipping

Packaging for Heavy Duty Lathe Machine

Our Services

Quality Guarantee For Heavy Duty Lathe Machine
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
