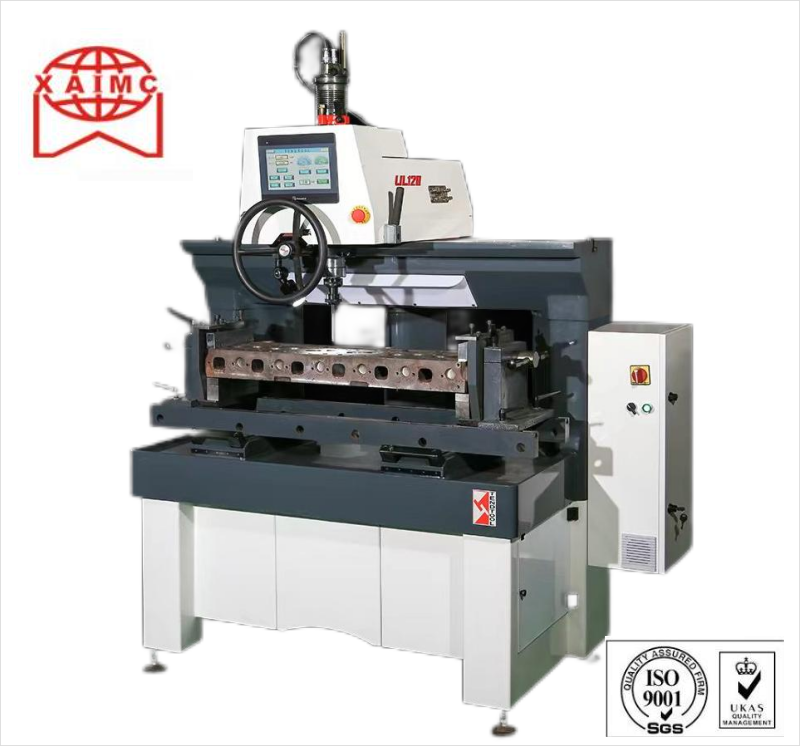

High-efficiency, high-precision, self-adaptive, toÃch screen machine for cylinder head

◆UL series machine is a new developped touch screen version.

◆Touch screen interface is more striking, operate integrated and humanization
◆Customized high performance control system, self- adaptive triple Air cushion workhead and build – in high torque spindle motor to achieve the high precision, more powerful and consistency for all seats cutting.
◆The feature of “JOG” easy control the spindle rotated, cutting bit stop in any position to avoid the blind area for safe operation
◆”Auto-centering”and “Manual- centering” to make centering more efficiency to be suitable of cutting
◆ Upgrade handle to control workhead and clamping system air-float
◆”Clamping System”assure the workpiece rotationin-45°to+45° More faster and fastening.

Category: Engine Rebuilding Machine

Description

Machine capabilities

Max. length of the cylinder head inch Unlimited

Max. width of the cylinder head inch 19.7

Max. height of the cylinder head inch 17.7

Crosswise work piece tilting degrees +45°-15°

Machining capacity dia. (min-max) inch 0.6-4.7

Work head displacement

Lengthwise inch 39

Crosswise inch 1.6

Sphere-Cylinder travel inch 0.4

Spindle

Max.spindle incination degrees 5

Spindle Travel inch 200/8

Power of the spindle Kw 2.2

Spindle rotation speed rpm 0-1000

Alimentations

Electric supply 380V/50Hz3Ph

Air pressure psi 87

Max. air flow l/mn-CFM 11

Level of noise at 400 RPM dba 72

Level of noise at 1200 RPM dba 82

Net weight (approx.) lbs 3300

Machine space requirements

Length inch 68.9

Width inch 45.3

Height inch 86.6
