Mark & model ： C0632A
H.S.Classification ： Machinery & Electronics Machines for Working Metal 8459 Machine tools for drilling, boring, milling etc.

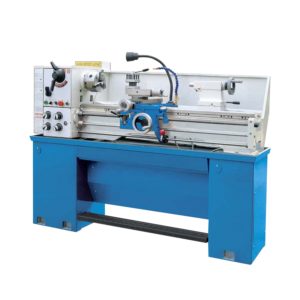

Product profile ： Horizontal Small Bench Type Lathe Machine
PRODUCT FEATURES:
Headstock gears are made of high quality steel, ground and hardened
Spindle speed range 70-2000RPM
Sealed and easy operating feed box has various feeds and thread cutting functions.

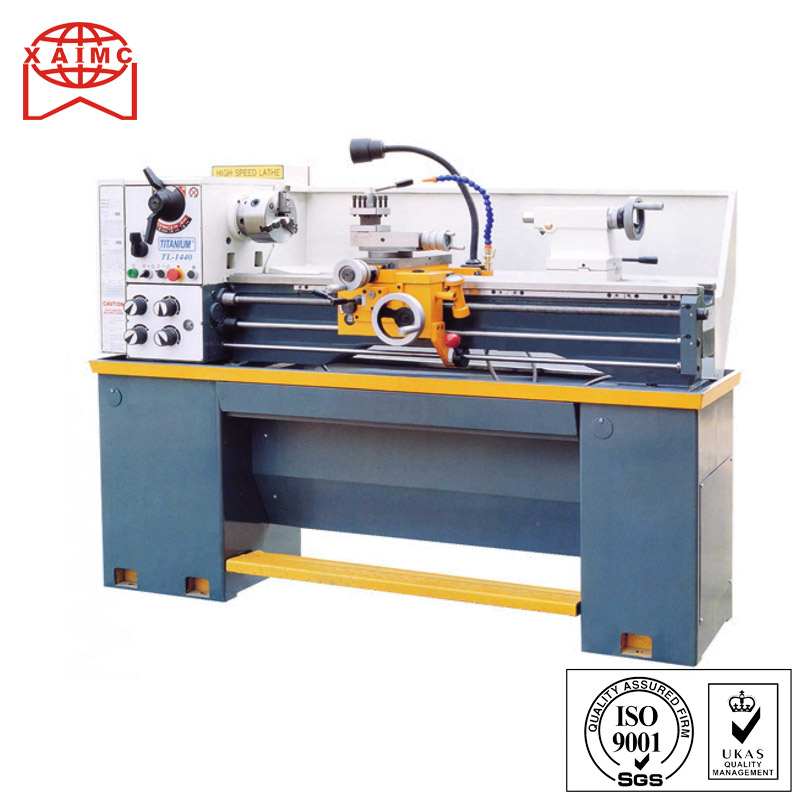

Lathe C0632A

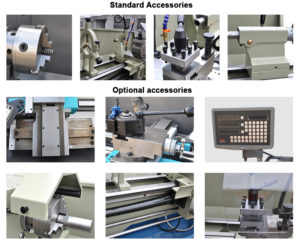

STANDARD ACCESSORE
3 Jaw chuck
4 Jaw chuck
Steady Rest
Face Plate Follow Rest
OPTIONAL ACCESSORIES
Live Center Quick change tool post Taper Turning Attachment Brake Coolant System Lamp
| ITEMS | C0632A | C0636A |
| Max. swing over bed | 13″ (330mm) | 14″ (360mm) |
| Max. swing in gap | 183/4″ (476mm) | 197/8″ (506mm) |
| Max. swing over slide | 71/4″ (185mm) | 81/2″ (215mm) |
| Bed width | 73/8″ (187mm) | |
| Max. Length of workpiece | 30″ (750mm)40″ (1000mm) | |
| Spindle nose | D1-4 | |
| Spindle bore | 11/2″ (φ 38mm) | |
| Taper of bore in spindle Morse | No. 5 | |
| Spindle speed steps | 8 | |
| Spindle speed scope | 70~2000r/min | |
| Inch thread | 4~56T. P. I/32 | |
| Metric thread | 0.4~7mm/32 | |
| Diametral thread | 8~120D. P. /33 | |
| Module thread | 0.2~3.5MP/27 | |
| Longitudinal feed range | 0.0032~0.1067in/r(0.082~2.71mm/r) | |
| Cross feed range | 0.00086~0.0367in/r(0.022~0.933mm/r) | |

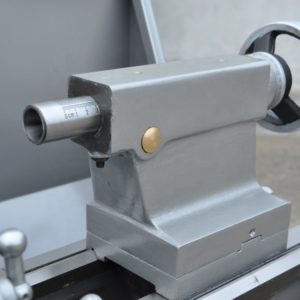

| Max. travel of tailstock quill | 35/8″ (95mm) | |
| Taper hole of tailstock | No. 3 | |
| Electric motor | 2HP(1.5KW)110v or 220v(1ph) 220v or 380v(3ph) |
|
| Net weight / Gross weight(1000mm) | 495/595kg | |
