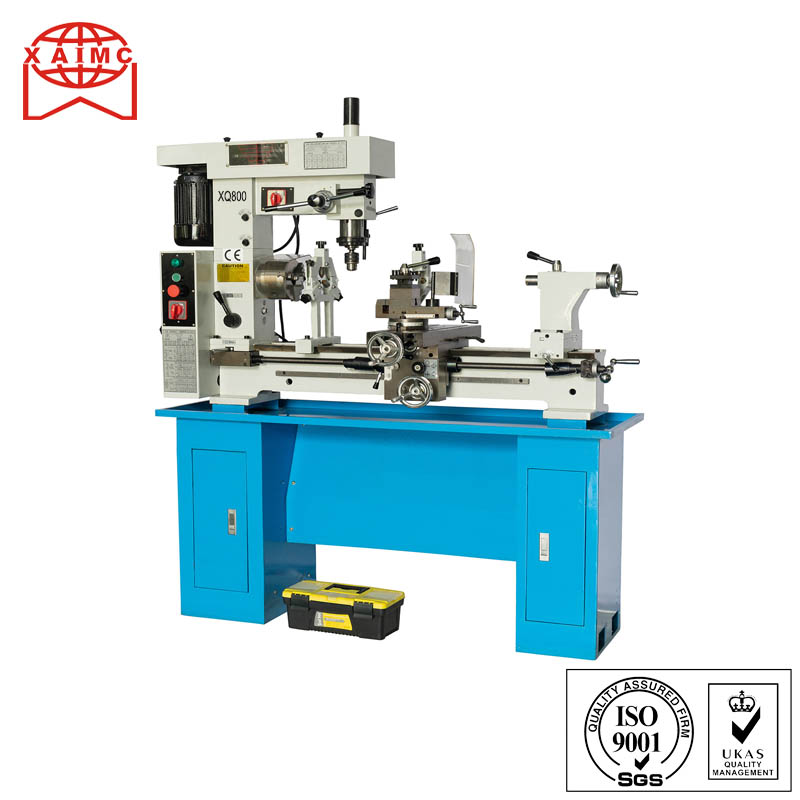

HQ800 Multi purpose Small type drilling milling combo turning multipurpose machine tools
|
Specifications for HQ800
|
|
|
Swing Over Bed
|
420mm
|
|
Distance Between Centers
|
800mm
|
|
Max. Longitudinal Travel
|
700mm
|
|
Max. Cross Travel
|
200mm
|
|
Taper Of Spindle
|
MT4
|
|
Spindle Bore
|
28mm
|
|
Step Of Spindle Speed
|
7
|
|
Range Of Spindle Speed
|
160-1360rpm
|
|
Barrel Travel
|
70mm
|
|
Barrel Taper
|
MT3
|
|
Metric Thread Range
|
0.2-6mm
|
|
nch Thread Range
|
4-120 T.P.I
|
|
Longitudinal Range Of Automatic Feeding:
|
0.05-0.0.35mm (0.002 “-0.014 “)
|
|
cross range of automatic feeding
|
0.05-0.0.35mm (0.002 “-0.014 “)
|
|
Max Driiling Capacity
|
∅22mm
|
|
Worktable Size(L×W)
|
475×160mm
|
|
Max. End Milling Capacity
|
∅28mm
|
|
Max. Face Mill Capacity
|
∅80mm
|
|
Distance Between Spindle Center And Column
|
285mm
|
|
Distance Between Spindle And Worktable
|
306mm
|
|
Headstock Travel Of Up And Down
|
110mm
|
|
Spindle Taper
|
MT3
|
|
Step Of Spindle Speed
|
16
|
|
Range Of Spindle Speed
|
120-3000 rpm
|
|
Swivel Angel Of Headstock
|
±360º
|
|
Motor Power
|
550W/750W
|
|
Packing Size
|
1430×580×1100mm
|
|
N.W/G.W
|
275kgs/325kgs
|
