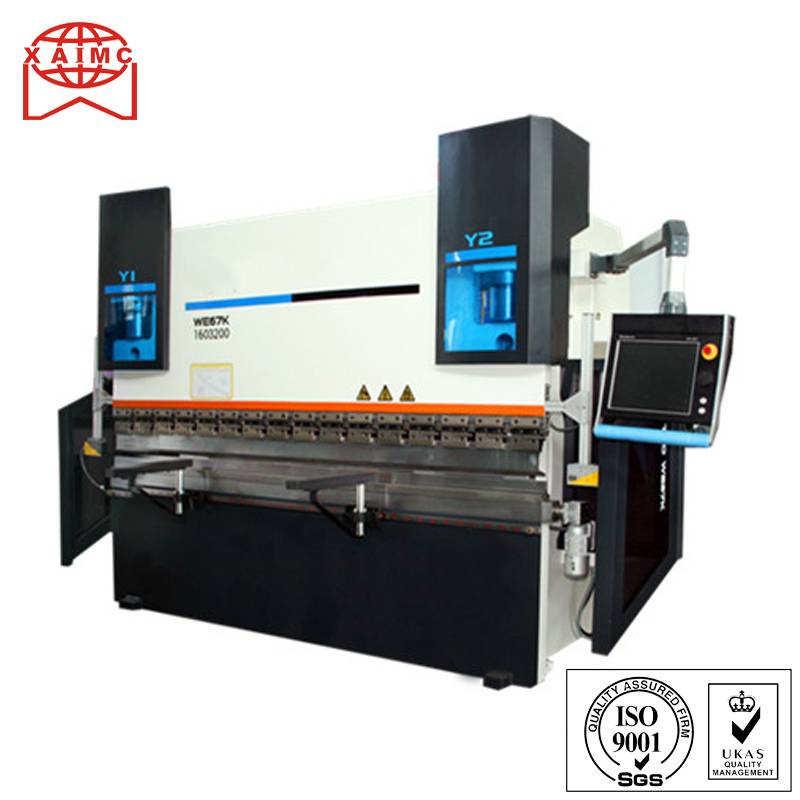

WC67K CNC Hydraulic Press Brake Machine

1. Hydraulic system:

– Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch –
Rexroth,Germany.
– Extremely reliable and precise Bosch – Rexroth valves are used for the regulating circuit. Every complete working cycle can be achieved through the control of hydraulic valve.
– All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
– Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
Being able to work under rated load continuously,stable working and high precision.

2. Electrical system and the safety interlock:

– Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to
operate.
– Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
– The machine by the European Union CE certification and ISO quality system certification

3. Synchro control system:

– Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
– 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
– The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Bending depth adjustment and RAM structures:

– The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth Automatic (digit readout) and motorized (E210 or DA41 CNC Control) Adjustable.
– Can move the ram up slowly,which allows the operator to control work piece conveniently.
– Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
– Hardened and ground standard sectioned top and 4V-Die bottom tools (4×1000 mm sections).

5. Servo motorized Backgauge (standard)

– CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
– Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
– High-precision ball screw and linear guide-way.Particular finger-stop design,enlarge the range of back gauge.
