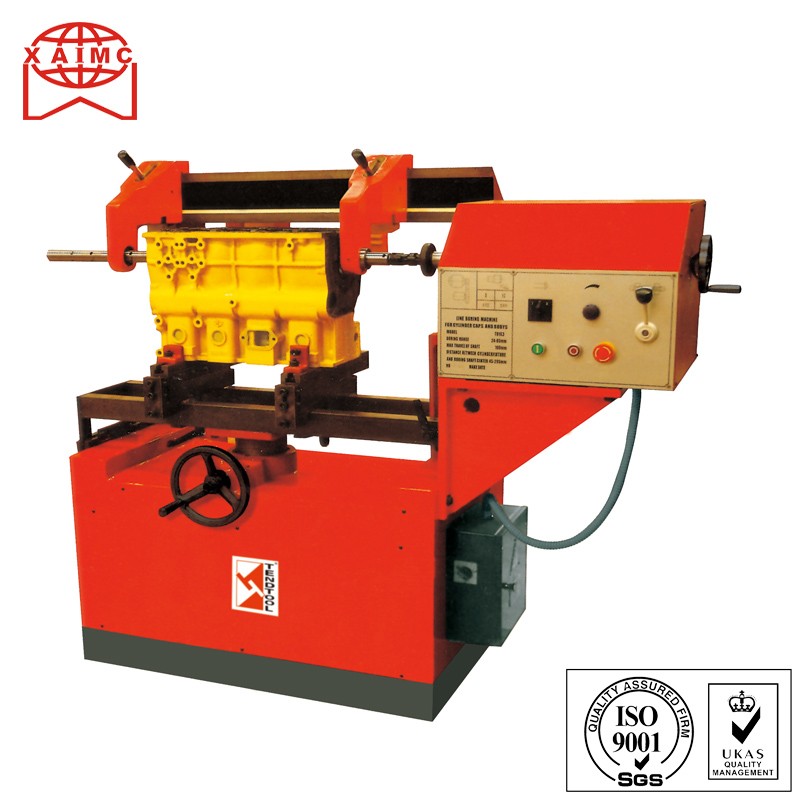

Line Boring Machine LB100

for con rod bush withspecial fixture.The boring carriage adopts guideway moving, center of main shaftalready adjustedin advance,This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft bush;
It also can be use vertical columngo up and down, Make the work piece to find positive and accurate. Good rigidity, spindle feeding stepless, boring w ith high accuracy.It purposed used in automotive service and repair filed

Line Boring Machine For Cylinder Heads & Blocks LB100

24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks LB100

Features:

Line Boring Machine For Cylinder Heads & Blocks
1. Line boring machine LB100 is a small size machine which, however, has a wide range of application.

2. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.

3. It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.

4. The machine is sturdy, compact and allows accurate machining.

Parameter:

Specification	LB100
Boring range	Φ24-Φ85 mm
Max.travel of shaft	100 mm
Max.boring length	Φ20 x 900 mm
Max.boring length	Φ32 x 980 mm
Main shaft rotating speed	245, 380 rpm
Boring shaft feed	Stepless
Distance between cylinder fixture and boring shaft center	45-295mm
Motor power	0.55/0.75 Kw
Overall dimensions ( L×W×H)	1620×700×1370 mm
Packing dimensions (L×W×H)	1740×920×1700 mm
N.W./G.W.	600/750 kg
