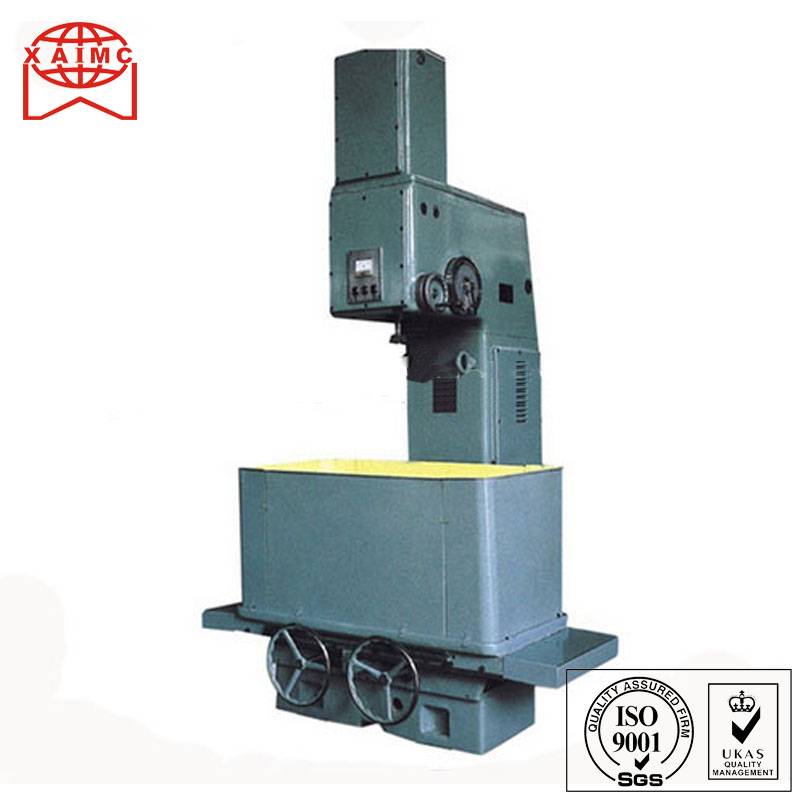

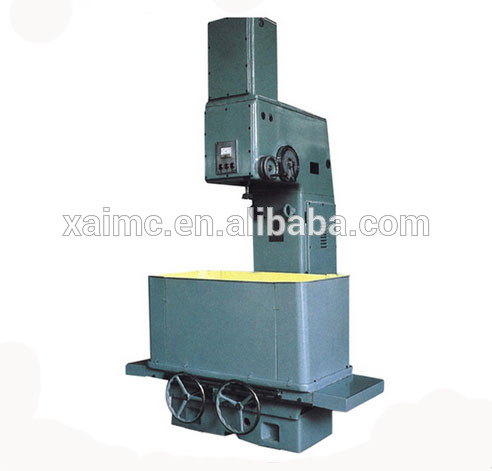

This machine is used for honing of cylinder block bores, cylinder liner bores etc.
Hydraulic cylinder bores,precision bores etc. Roundness 0.0025mm and surface finish
Ra 0.4 can be obtained.Bore taper can be corrected by using short stroke.
Features:
simple structure, easy operation and high working accuracy.
Reciprocation head is hydraulic driven.
Expansion and contraction of honing head is controlled by thefeed handwheel directly.
| Model | M4215 | M4215/1 |
| Honing Diameter | 50-150 | 30-150 |
| Max.Honing depth | 400 | |
| Spindle speeds (4 setps) | 112,160,224,315 | |
| Max.spindle travel | 370 | |
| Telescope displacement length of spindle connecting rod | 180 | |
| Spindle reciprocation speed | 3-18 | |
| Distance between the lower and of spindle connecting rod and worktable surface after extending spindle connectiong rod
|
475-845 | |
| Distance between spindle axis to colume | 350 | |
| Worktable trave longitudinal / Traverse | 800/60 | |
| Worktable size | 480×1100 | |
| Worktable height | 470 | |
| Max. working pressure of hydraulic system | 25 | |
| Supply flow of coolant pump | 22 | |
| Total output | 4.525 | |
| Motor for spindle rotation | 2.2 | |
| Hydraulic pump motor | 2.2 | |
| Coolant pump motor | 0.125 | |
