Main Features:
1.Inner-outer column.
2.Mechnical clamping for the column and Hydraulic Speed Changing.
3.Spindle with auto-feeding.
4.Coolant, work light, available.
5.Spindle Box machined by machining center.
Main specification

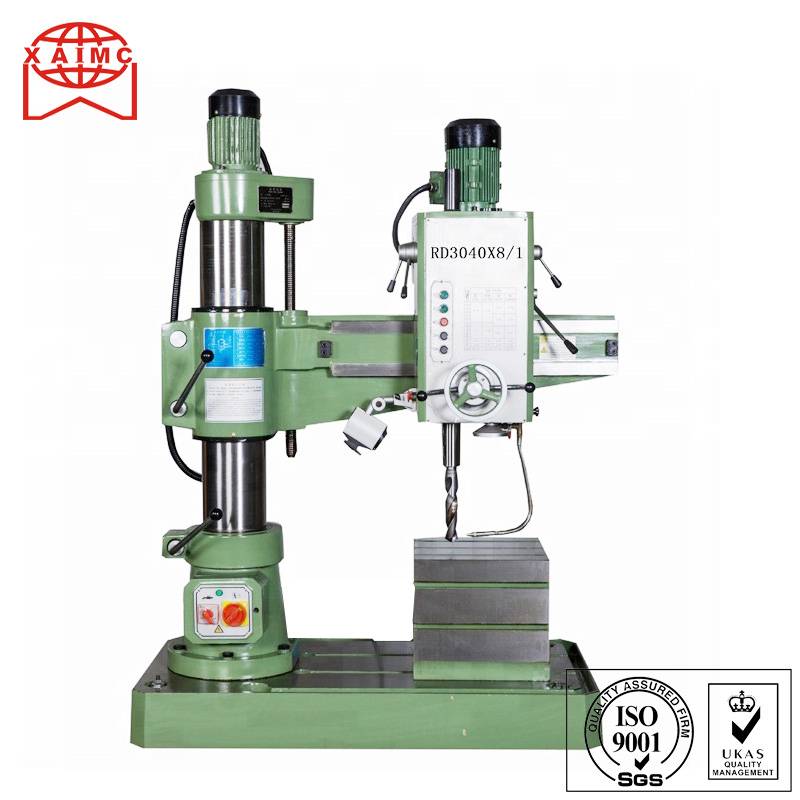

Model | Z3032×8/1, Z3040×8/1 |
Max.Drilling capacity (mm) | 32 |
Distance spindle axis to column generating line (mm) | 320-820 |
Diameter of column (mm) | 200 |
Spindle taper | MT4 |
Spindle travel (mm) | 240 |
Spindle speeds range (r/min) | 75-1220 |
Spindle speeds series | 6 |
Range of Spindle feeds (r/min) | 0.1-0.25 |
Mpindle Spindle feeds | 3 |
Max.Distance spindle nose to working surface of base (mm) | 320-900 |
Dimension of worktable (mm) | 400×400×350 |
Dimension of base (mm) | 1370×700×160 |
Overall Size (mm) | 1407×720×1885 |
Power of Main motor (kW) | 1.5 |
G.W/N.W (kg) | 1425/1200 |
Packing dimension (cm) | 155×77×210 |
Standard accessories:
1.Box shape worktable
2.taper sleeve
3.tool releasing wrench
4.drift
5.eyelet bolts
Optional accessories:
1.quick instead chuck
2.tapping chuck
3.grease gun
