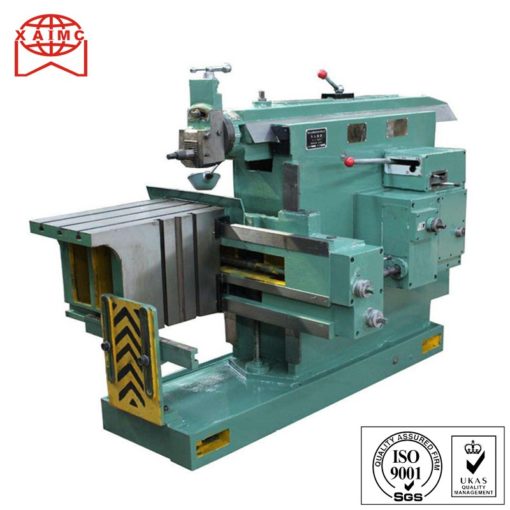

horizontal metal shaper shaping machine price BC6063
Product Application
1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available. For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
|
SPECIFICATIONS OF SHAPING MACHINE BC6063, BC6066, BC6085
|
||||
|
SPECIFICATIONS
|
BC6063
|
BC6066
|
BC6085
|
|
|
Max. shaping length
|
630
|
660
|
850
|
|
|
Max. range of the horizontal movement of the table
|
385
|
385
|
400
|
|
|
Max. distance between the ram bottom and table
|
630
|
630
|
710
|
|
|
Max. length of the vertical movement of table
|
360
|
360
|
360
|
|
|
Dimension of the table top(LxW)
|
630×400
|
660×400
|
800×450
|
|
|
Max.stroke length of the toolhead
|
120mm
|
120mm
|
160mm
|
|
|
Max.swivel angle of the toolhead
|
±60°
|
±60°
|
±60°
|
|
|
Max. section of tool(WxT)mm
|
20x30mm
|
20x30mm
|
20×30mm
|
|
|
Number of ram reciprocation per minute
|
14-80
|
14-80
|
17-100
|
|
|
Range of table feed
|
Horizontal feed
|
0.2-2.5mm/recip
|
0.2-2.5mm/recip
|
0.25-3mm/recip
|
|
Vertical feed
|
0.08-1mm/recip
|
0.08-1mm/recip
|
0.12-1.5mm/recip
|
|
|
Width of T-slot for center positioning
|
18mm
|
18mm
|
22mm
|
|
|
Power fo the main motor
|
3kW
|
3kW
|
5.5kW
|
|
|
N.W./G.W.
|
1750/1870
|
1750/1870
|
2940/3090
|
|
|
Overall dimensions(LxWxH)
|
2340x1225x1480
|
2357x1225x1480
|
2950×1325×1690
|
|
Product Show
China factory horizontal metal shaper shaping machine price BC6063
