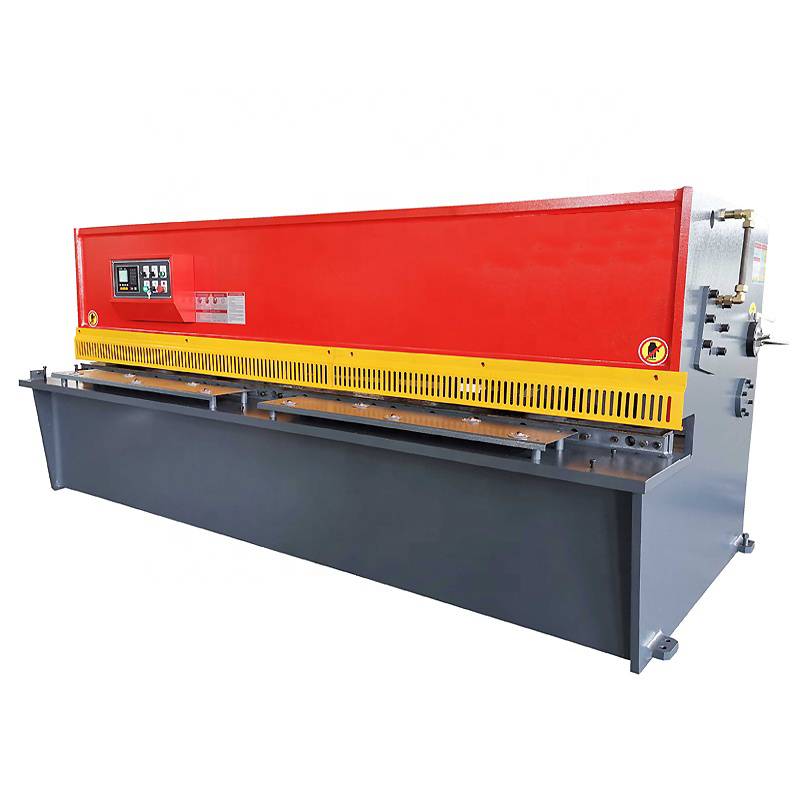

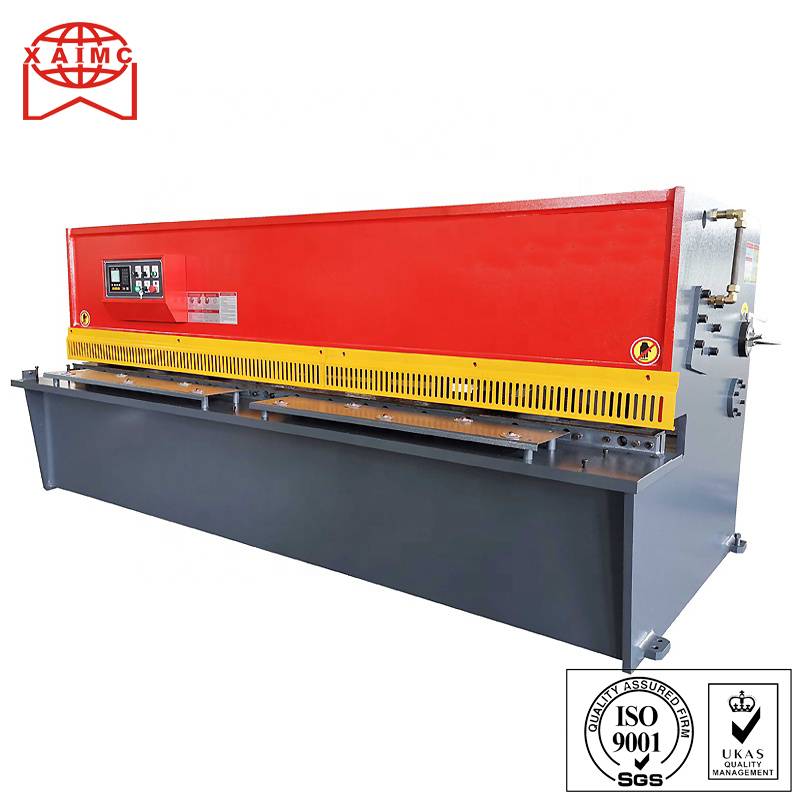

QC12Y large hydraulic swing beam shear

Take model QC12Y-6X3200 as example:

QC12Y means this is a kind of hydraulic swing beam shearing machine.

6 means the max. cutting thickness of this machine for mild carbon steel plate is 6 mm.

3200 means the max. cutting width of the machine is 3200 mm.

QC12Y-6×3200 Hydraulic Metal Plate Shearing Machine For Sale

QC12Y QC11Y Accurl 6mm 8mm 12mm Hydraulic Shearing Machine

Product Application

QC12Y hydraulic swing beam shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

TECHNICAL PARAMETER
1	Machine Model	QC12Y-6X3200
2	Max Cutting Thickness	mm	6
3	Max Cutting Length	mm	3200
4	Strength of shearing sheet	Mpa	ób≤450
5	Shearing Angle		1.5°
6	Max Length of Back Gauge	mm	20-600
7	Stroke Number	n/min	14
8	Blade Length	mm	3300
9	Height of Worktable	mm	800
10	Main Motor Power	KW	7.5

Performance characteristics

1. Totally European design, streamlined looking. Monoblock steel welding frame and stress relief process by Annealing treatment.
2. This hydraulic shearing machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
3. Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
4. Sliding balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
5. All seals in cylinder is imported, the most famous brand, good quality and high performance
6. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage
7. The distance of the backgauge is adjusted by the motor.
8. Digital display device for distance of back gauge and shearing times available.
9. Adopt handwheel to rapidly and accurately adjust the blade clearance
10. Adopt integrated hydraulic system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
11. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
12. Humanistic concern security design in all details and also the scientific details through KINGWELL standard.

Standard Equipment

1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. High quality, hardened and grinded top and bottom blades. Top blades with two cutting edges and bottom blades with four cutting edges.
3. Counter of Strokes, Cutting Length Adjustment
4. Hydraulic and Electrical overload protection
5. Squaring Arm and Front Support Arms
6. Built-in Spring Pressure Cylinder
7. SIEMENS Motor or Chinese High Quality Motor (Because SIEMENS motor made in China has long delivery period, if the special voltage , we will not use SIEMENS unless the client can accept the long delivery period for machine also. Mostly the normal voltage , the delivery is 30-40 working days for motor. We also use a lot of Motor named CHINA HANNENG, its quality has been proved with several years working. )
8. Germany Bosch Rexroth Hydraulic System or CHINA Top Level Youtong Hydraulic System.
9. USA SUNNY Hydraulic Gear Pump or CHINA Shanghai YONGMING High Quality Hydraulic Gear Pump which is used for Chinese Aircraft Industry.
10. JAPAN VALQUA sealing parts .
11. Germany JS tubing connector
12. Germany SIEMENS or France SCHNEIDER Main Electric Elements.
13. HIWIN Ball screws & Polished rod
14. Estun E21S NC system or other NC controller system.

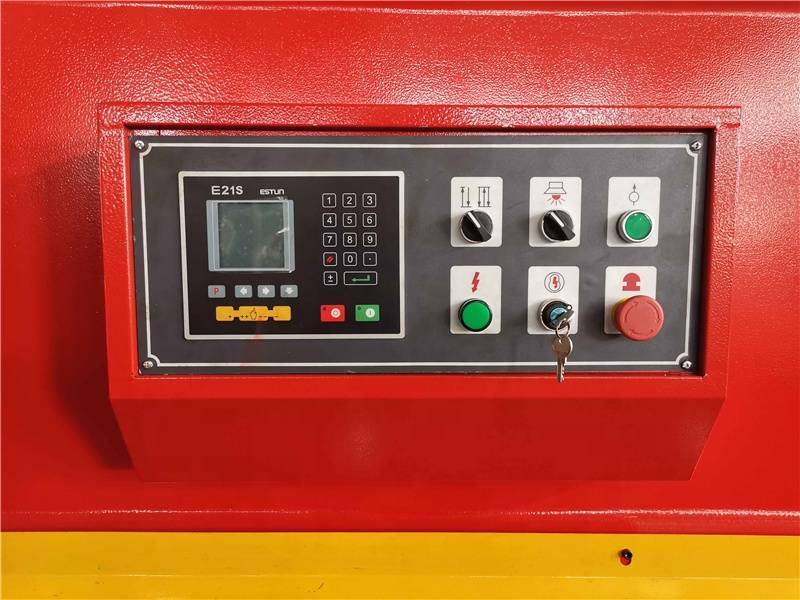

ESTUN E21S NC Controller System

1. Back gauge control .

2. Control for general AC motors, frequency inverter.

3. Intelligent positioning.

4. Double programmable digital output.

5. Stock counter.

6. Program memory of up to 40 programs, up to 25 steps per program.

7. One side positioning.

8. Retract function.

9. One key backup/restore of parameters.

10. mm/inch, Chinese/English .

You can also choose other models from below sheet by your requirement.
