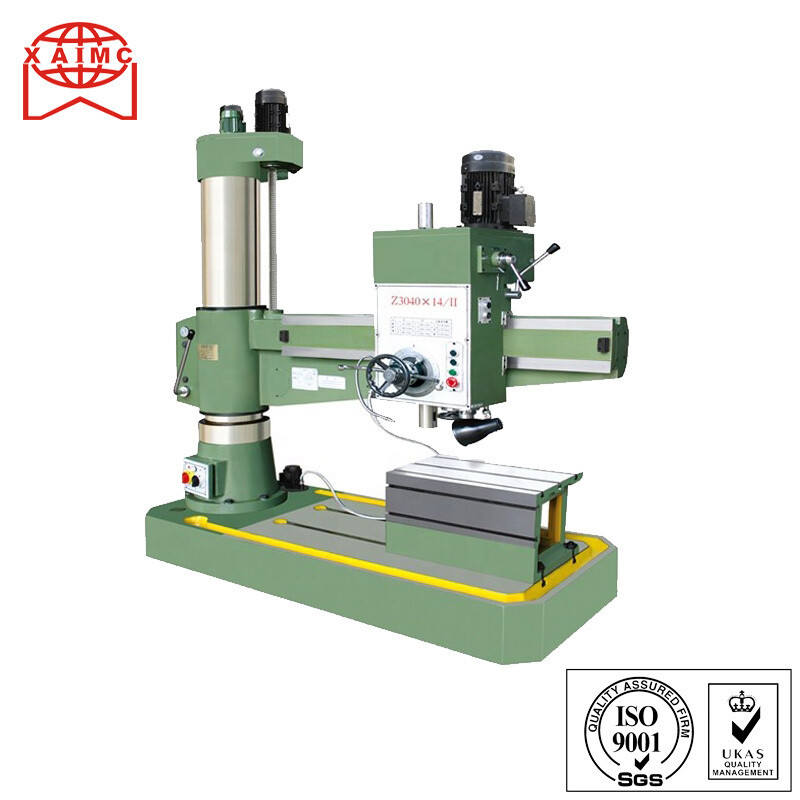

| MODEL | UNIT | Z3040 X 16/1 | Z3050 X 16/1 | ZQ3050 X 20/1 |
| Max. drilling diameter | mm | Φ40 | Φ50 | Φ50 |
| Distance spindle axis to column generating line | mm | 350 ~ 1600 | 350 ~ 1600 | 350 ~ 2000 |
| Diameter of column | mm | 350 | 350 | 350 |
| Spindle taper | MT4 | MT5 | MT5 | |
| Spindle travel (manual/automatic) | mm | 315/115 | 315/115 | 315/115 |
| Spindle speeds range | r/min | 25 ~ 2000 | 25 ~ 2000 | 25 ~ 2000 |
| Number of spindle speeds | 16steps | 16steps | 16steps | |
| Range of spindle feeds | mm/r | 0.04 ~ 3.2 | 0.04 ~ 3.2 | 0.04 ~ 3.2 |
| Number of spindle feeds | 16 steps | 16 steps | 16 steps | |
| Distance from spindle nose to working surface of base plate | mm | 350 ~ 1250 | 320 ~ 1220 | 320 ~ 1220 |
| Dimension of worktable | mm | 630 x 500 x 500 | 630 x 500 x 500 | 630 x 500 x 500 |
| Dimension of base | mm | 2400 x 1000 x 200 | 2400 x 1000 x 200 | 2400 x 1000 x 200 |
| Overall size | mm | 2500 x 1060 x 2650 | 2500 x 1060 x 2650 | 2900 x 1060 x 2650 |
| Power of main motor | kw | 4 | 4 | 4 |
| Gross / Net Wight | kg | 3650 / 3400 | 3650 / 3400 | 3850 / 3550 |
| Packing dimension | mm | 2600 x 1120 x 2600 | 2600 x 1120 x 2600 | 3000 x 1120 x 2600 |
