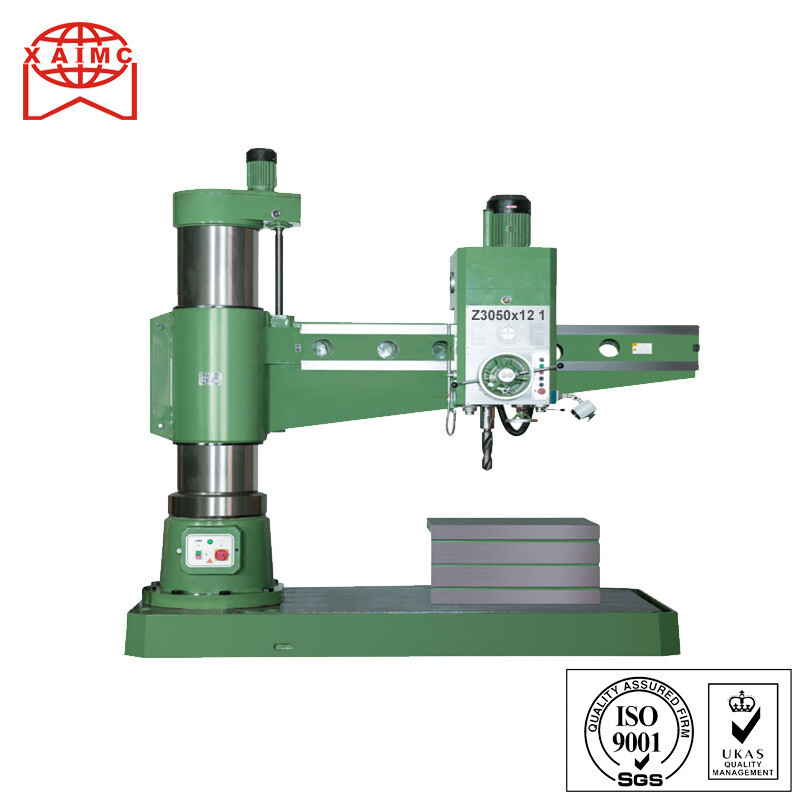

| MODEL | UNIT | Z3050 X 12/1 | Z3040 X 13/1 | Z3040 X 10/1 | Z3032 X 10/1 |
| Max. drilling diameter | mm | Φ50 | Φ40 | Φ40 | Φ32 |
| Distance spindle axis to column generating line | mm | 350 ~ 1250 | 300 ~ 1300 | 300 ~ 1000 | 300 ~ 1000 |
| Diameter of column | mm | 350 | 300 | 240 | 240 |
| Spindle taper | MT5 | MT4 | MT4 | MT4 | |
| Spindle travel (manual/automatic) | mm | 315/115 | 280 | 280 | 280 |
| Spindle speeds range | r/min | 25 ~ 2000 | 32 ~ 2500 | 32 ~ 2500 | 32 ~ 2500 |
| Number of spindle speeds | 16steps | 16steps | 16steps | 16steps | |
| Range of spindle feeds | mm/r | 0.04 ~ 3.2 | 0.10 ~ 1.25 | 0.10 ~ 1.25 | 0.10 ~ 1.25 |
| Number of spindle feeds | 16 steps | 8 steps | 8 steps | 8 steps | |
| Distance from spindle nose to working surface of base plate | mm | 350 ~ 1250 | 300 ~ 1320 | 220 ~ 1000 | 220 ~ 1000 |
| Dimension of worktable | mm | 630 x 500 x 500 | 600 x 450 x 450 | 600 x 450 x 450 | 600 x 450 x 450 |
| Dimension of base | mm | 2050 x 1000 x 200 | 2050 x 900 x 200 | 1710 x 800 x 160 | 1710 x 800 x 160 |
| Overall size | mm | 2150 x 1060 x 2650 | 2100 x 900 x 2300 | 1760 x 800 x 2050 | 1760 x 800 x 2050 |
| Power of main motor | kw | 4 | 3 | 2.2 | 2.2 |
| Gross / Net Wight | kg | 3250 / 3000 | 2500 / 2100 | 1920 / 1830 | 1920 / 1830 |
| Packing dimension | mm | 2400 x 1120 x 2520 | 2350 x 1060 x 2450 | 1870 x 970 x 2200 | 1870 x 970 x 2200 |
