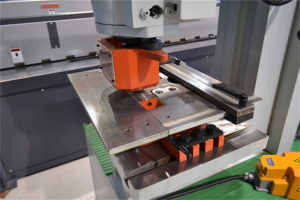

Shearing Machine Hydraulic Q35y-20

Hydraulic Iron Worker featuring multiple functions includes Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec. Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake, Angle Bending and Pipe Notching.

It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.

Mark & model ： Q35Y-20

Origin ： Asia and Pacific Area China

Quality standard ： International

H.S.Classification ： Machinery & Electronics Machines for Working Metal 8462 Machine tools for forging, hammering, bending, die-stamping etc.

Product profile ： COMBINED PUNCHING & SHEARING MACHINE
Shearing Machine Hydraulic machine MODEL: Q35Y-20

The machine has five basic functions: Punching, steel-; Late shearing, angle-iron-shearing and template-shearing.

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30

Force ( t)	66	90	120	165

Max. Hole punching thickness (mm)	16	20	25	30

Max. Hole punching diameter (mm)	25	30	35	38

Max. flat steel shearing capacity	16×250	20×330	25×33	30×335
	8×400	10×480	10×480	20×600
Hydraulic cylinder slide stroke (mm)	80	80	80	80

Stroke number / min	8	8	6	6

Main motor (kw)	4	5.5	7.5	11

Machine dimension (mm)	1640×730×1770	1860×800×1900	2355×960×2090	2680×1040×2300

Machine weight (kg )	1600	2000	4800	6800
