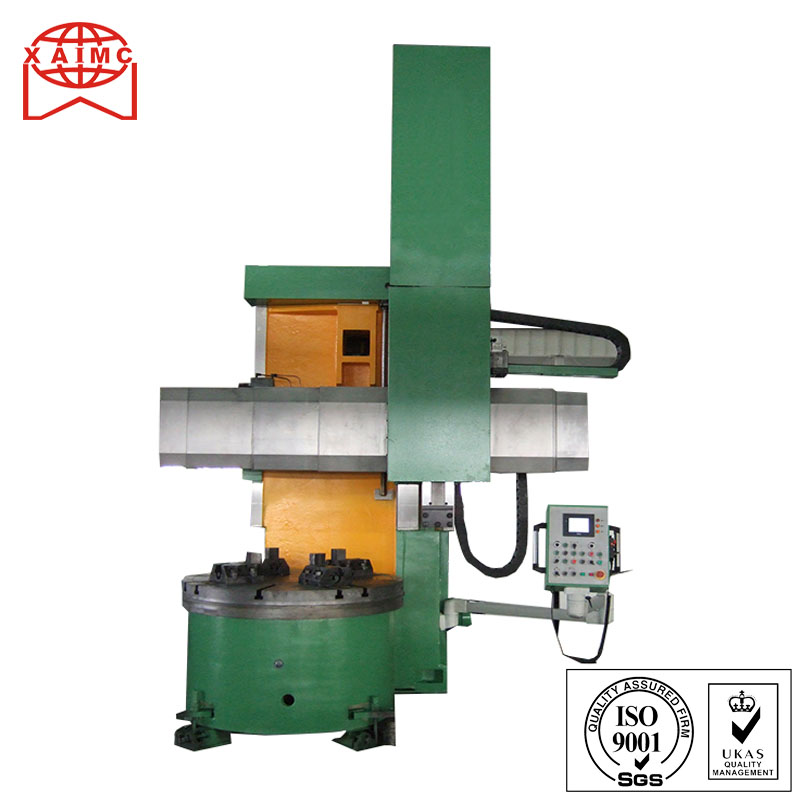

Single Column Vertical Turning Lathe Machine C518 C5112 C5116 C5123 C5125 C5131
VERTICAL LATHE FEATURES:
1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted, severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
SPECIFICATIONS:
| MODEL | UNIT | C518 | C5112 | C5116 | C5123 | C5125 | C5131 |
| Max. turning diameter of vertical tool post | mm | 800 | 1250 | 1600 | 2300 | 2500 | 3150 |
| Max. turning diameter of side tool post | mm | 750 | 1100 | 1400 | 2000 | 2200 | 3000 |
| Working table diameter | mm | 720 | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 800 | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 2 | 3.2 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 10~315 | 6.3~200 | 5~160 | 3.2~100 | 2~62 | 2~62 |
| Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 | 16 |
| Max. torque | KN m | 10 | 17.5 | 25 | 25 | 32 | 35 |
| Horizontal travel of vertical tool post | mm | 570 | 700 | 915 | 1210 | 1310 | 1600 |
| Vertical travel of vertical tool post | mm | 570 | 650 | 800 | 800 | 800 | 800 |
| Power of main motor | KW | 22 | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 6.8 | 9.5 | 12.1 | 19.8 | 21.8 | 30 |
