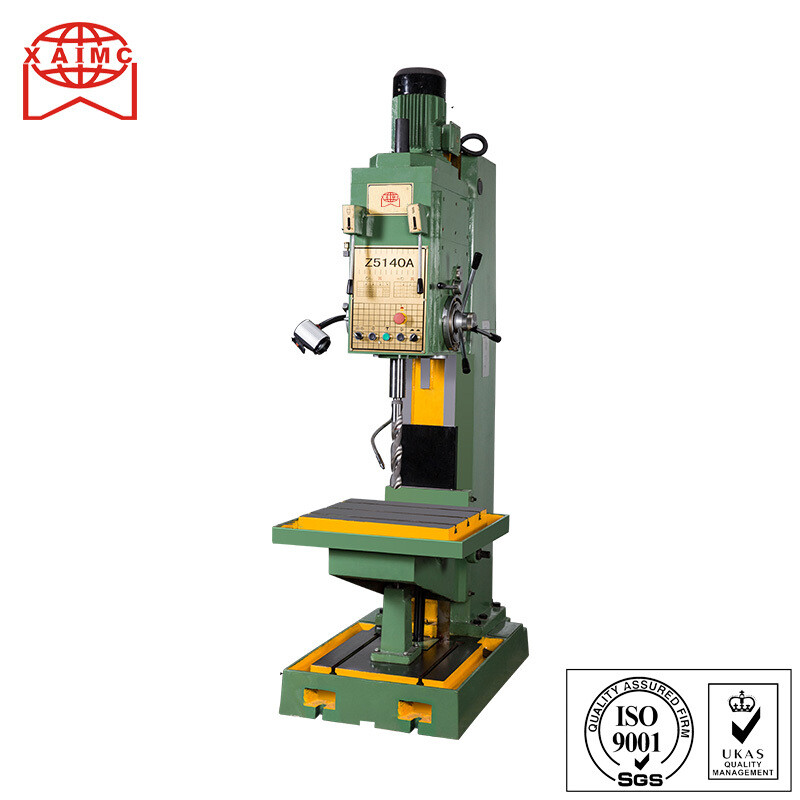

Box-type vertical drilling machine Z5140A, Z5150A, Z5140B, Z5150B, Z5163B & Z5180B

Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.

The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.

The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation

Category: Drilling

Description

MODEL	UNIT	Z140A	Z5150A	Z5140B	Z5150B	Z5163B	Z5180B
Max. drilling diameter	mm	Φ40	Φ50	Φ40	Φ50	Φ63	Φ80
Max. feed resistance	N	16000	16000	16000	16000	3000	3000
Max. permissible spindle torque	N.m	350	350	350	350	800	800
Power of main motor	kw	3	4	3	4	5.5	7.5
Throat distance	mm	335	335	335	335	375	375
Spindle taper		MT4	MT5	MT4	MT5	MT5	MT6
Spindle travel	mm	250	250	250	250	250	250
Spindle box travel (manual)	mm	200	200	200	200	250	250
Spindle speeds range (steps)	r/min	31.5 ~ 1400 (12)				40 ~ 570 (9)	40 ~ 570 (9)
Feed rates (steps)	mm/rev	0.056 ~ 1.80 (9)				0.1 ~ 0.78 (6)	0.1 ~ 0.78 (6)
Max. trave of table	mm	300	300	300	300	300	300
Working surface of worktable	mm	560 x 480	560 x 480	560 x 480	560 x 480	650 x 550	650 x 550
Max. Distance spindle nose to worktable surface	mm	780	740	830	830	800	800
Overall dimensions (L x W x H)	mm	1090 x 905 x 2535				965 x 1452 x 2787
Gross / Net Wight	kg	1250/1190				1850/ 1935
Packing dimension (L x W x H)	cm	122 x 80 x 248 or 108 x 62 x 224				150 x 92 x 280 or 275 x 101 x 179
