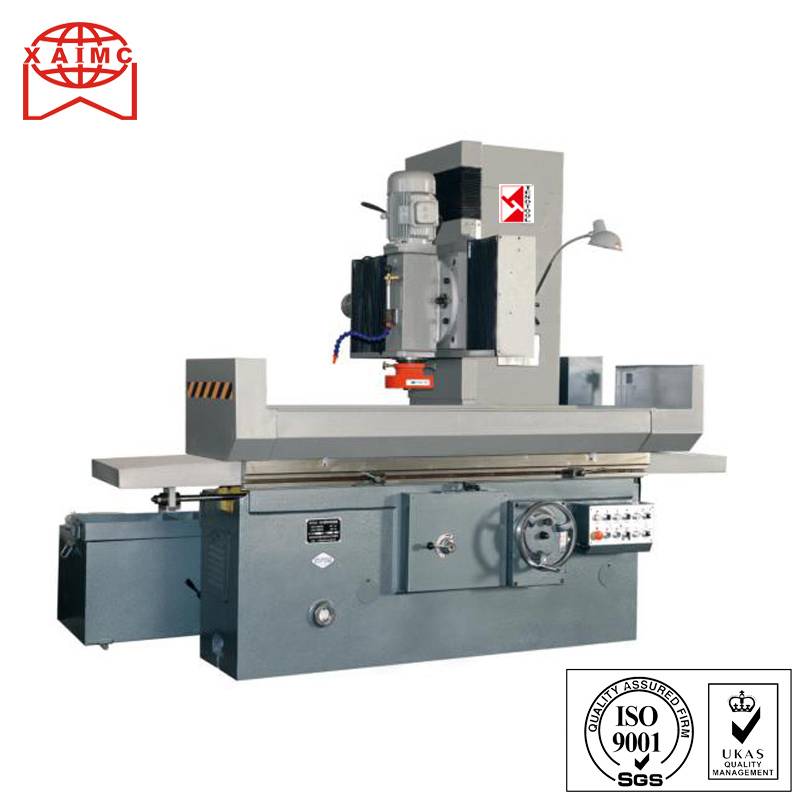

Products Description
|
Main Specifications
|
unit
|
M7232
|
M7232x16
|
M7240x20
|
|
Size of working table (W×L)
|
mm
|
320×1000
|
320×1600
|
400×2000
|
|
Max.size of workpiece to be ground
(W×L×H) |
mm
|
320×1000×400320
|
×1600×400
|
400×2000×400
|
|
Table longitudinal travel （Hydraulic)
|
mm
|
200～1100
|
200～1700
|
200～2100
|
|
Max.Allowable weight of workpiece
(Including eletromagnetic chuck) |
kg
|
624
|
1000
|
1248
|
|
Max.Travel of wheel-head cross (manual or hydraulic)
|
mm
|
550 630
|
||
|
Wheel size (O.D×W×I.D)
|
mm
|
Φ150×50×Φ32
|
||
|
Electrical equipment total capacity
|
kVA
|
9 |
9
|
10 |
|
Grinding wheel motor
|
kW |
4
|
||
|
Rotational speed
|
r/min
|
2890 | ||
|
Equal thickness of the workpiece
|
mm
|
1000:0.015
|
||
|
Surface roughness of the workpiece
|
μm
|
Ra0.63
|
||
|
Overall dimensions (L×W×H)
|
mm
|
3200×1736×2250
|
4300×1736×2250
|
502010×1700×2250
|
|
Packing dimensions (L×W×H)
|
cm
|
318×191×260
|
430×189×258
|
570×200×258
|
|
N.W
|
kg
|
4500
|
5500
|
6500
|
