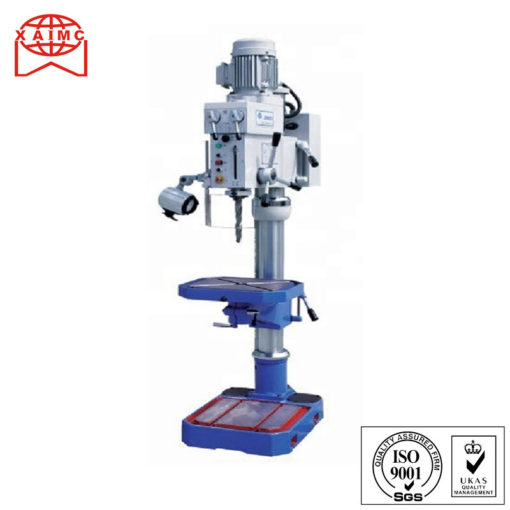

Pillar type vertical drilling machine Z5025, Z5025B

High spindle speed and wide speed range

Drilling diameter: Φ25mm

Category: Drilling

1.Change speed with gears and operate easily;

2.High spindle speed and wide speed range;

3.Characteristic auto tool releasing device guarantees ,it is very easy to change tool;

4.Equiped with coolant system and work lamp;

5.Ideal choice for sigle piece,small batch and mass;

6.Production for drilling,counter boring,reaming,tapping,spot facing,etc

MODEL	UNIT	Z5025	Z5025B
Max. drilling diameter	mm	Φ25	Φ25
Diameter of column	mm	100	100
Spindle travel	mm	150	150
Distance spindle axis to column generating line	mm	225	225
Max. Distance spindle nose to table	mm	630	/
Max. Distance spindle nose to base	mm	1670	550
Spindle taper		MT3	MT3
Spindle speeds range	r/min	100 ~ 2900	100 ~ 2900
Spindle speeds series		8	8
Dimension of worktable surface	mm	Φ440	/
Table travel	mm	560	560
Dimension of base table	mm	690 x 500	690 x 500
Overall height	mm	1900	1390
Power of main motor	kw	1.1/0.75	1.1/0.75
Coolant motor	W	40	40
Gross / Net Wight	kg	300 / 290	235 / 225
Packing dimension	cm	70 x 56 x 182	78 x 52 x 117
