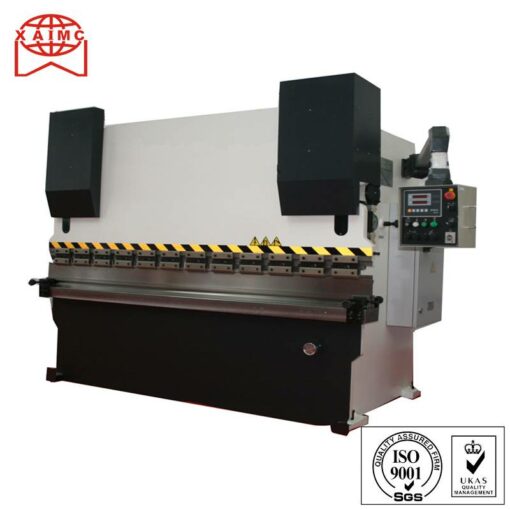

WC67Y Hydraulic Press Brake Machine

Main Features

●Totally EU streamlined design, Monoblock by welding robots & apparatus and stress relief process by Annealing treatment.

●Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany

●Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.

●The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by E21.

●Inch, single mode being designed for the machine and reversing and maintain time can be controlled by PLC.

●Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Categories: Metal Forming Machinery, Press Brakes

Description

Product Description

New Listing Steel Bender Press Brake Hydraulic Sheet metal bending Machine

Working Source	Hydraulic
Bending Material	Carbon steel, stainless steel, aluminum, mild steel
Controller	NC Controller, E21, E220P, DA41, CT12
Press Brake Usage	Bending plate into different Angle Curling Plate into Hinge Flattening plate
Voltage	220V/380V according to customer request
Tooling	A set of standard tooling

Specification	Nominal force	Length of working table	Distance between columns	Throat depth	Max. slide stroke	Max. shut height	Travel times	Main motor power	Max. hydraulic pressure
WC67K	KN	mm	mm	mm	mm	mm	Mm-1	KW	MPa
30T-1600	300	1600	1240	150	85	180	20	3	16
30T-2000	300	2000	1640	150	85	180	20	3	16
40T-2500	400	2500	2040	200	110	340	10	4	20.5
50T-2500	500	2500	2040	200	110	340	10	4	20.5
63T-2500	630	2500	2040	200	110	360	12	5.5	20.5
63T-3200	630	3200	2500	200	110	360	12	5.5	20.5
80T-2500	800	2500	2040	200	110	360	12	5.5	20.5
80T-3200	800	3200	2500	200	110	360	12	5.5	20.5
100T-2500	1000	2500	1900	320	120	370	15	7.5	25
100T-3200	1000	3200	2600	320	120	370	15	7.5	25
100T-4000	1000	4000	3200	320	120	370	15	7.5	25
125T-2500	1250	2500	1900	320	120	370	12	7.5	25
125T-3200	1250	3200	2600	320	120	370	12	7.5	25
125T-4000	1250	4000	3200	320	120	370	12	7.5	25
160T-2500	1600	2500	1850	320	200	460	10	11	25
160T-3200	1600	3200	2460	320	200	460	10	11	25
160T-4000	1600	4000	3260	320	200	460	10	11	25
160T-6000	1600	6000	4800	320	200	460	10	11	25
200T-3200	2000	3200	2460	320	200	460	10	15	25
200T-4000	2000	4000	3260	320	200	460	10	15	25
200T-6000	2000	6000	4800	320	200	460	10	15	25
250T-3200	2500	3200	2400	400	250	530	10	18.5	20.5
250T-4000	2500	4000	3200	400	250	530	10	18.5	20.5
250T-6000	2500	6000	4800	400	250	530	10	18.5	20.5
300T-3200	3000	3200	2400	400	250	530	10	22	20.5
300T-4000	3000	4000	3200	400	250	530	10	22	20.5
300T-6000	3000	6000	4800	400	250	530	10	22	20.5
400T-3200	4000	3200	2600	500	250	540	10	30	20.5
400T-4000	4000	4000	3200	500	250	540	10	30	20.5
400T-6000	4000	6000	4800	500	250	540	10	30	20.5
400T-7000	4000	7000	5800	650	250	850	8	30	20.5
500T-6000	5000	6000	4800	500	320	590	10	45	20.5
500T-8000	5000	8000	5800	650	320	590	8	45	20.5
800T-6000	8000	6000	4760	500	400	920	8	55	20.5

Performance Features

1.Stanard two axis control (X.Y)

2. Mechancial torque synchronization(torsion bar)

3,The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, ensure machine high strength and good rigity

3Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of slidder, and installed with digital display device, easy and quick for operator

4,Quick clamping is equipped,it is convenient for operator to install and get offer punch

Press Brake Backgauge Hiwin Ball Screw and Linear Guide Rail

Adopts HIWIN Ball Screw,linear guide rail , improve machine backgauge accuracy

Detailed Images

Siemens main motor, Germany Bosch Rexroth hydraulic system/Germany EMB tube connector/schneider electrics/ HIWIN linear guide and ball screw/SUNNY Pump/
