Product Description

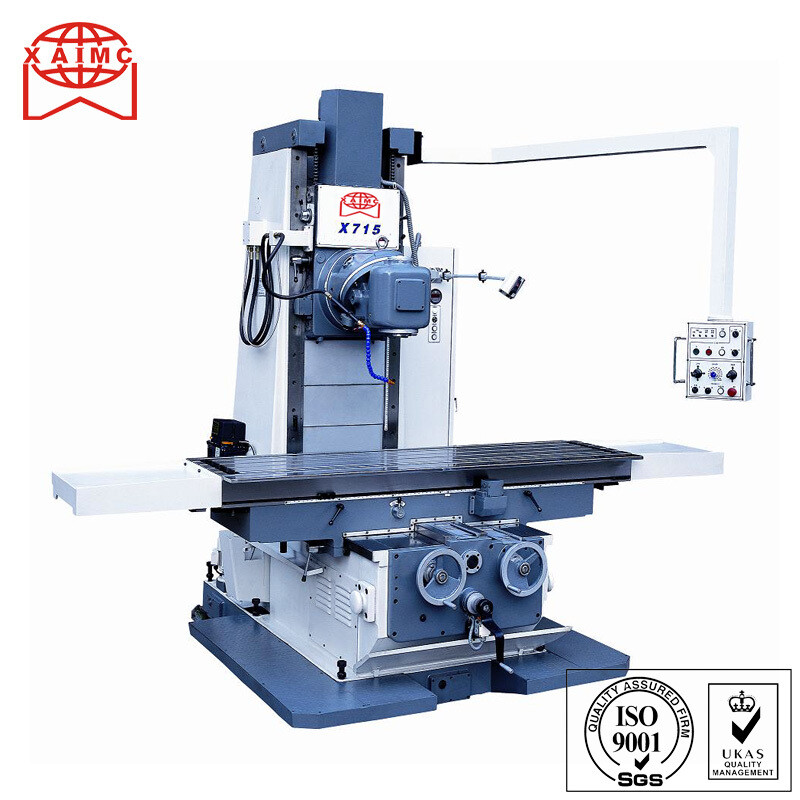

Bed Type Vertical Milling Machine X715
Features:
The milling head moves upwards and downwards alonge the column, the worktable can carry heavy load.
The miller can make high precision which is suitable to process high-duty cutting.
Specification
|
Model
|
Unit
|
X715
|
|
Table:
|
|
|
|
Table size
|
mm
|
2100×500
|
|
T slot
|
no
|
4
|
|
Size ( Width )
|
mm
|
20
|
|
Centre distance
|
mm
|
100
|
|
Max. load of Table
|
kg
|
2000
|
|
Machining Range :
|
|
|
|
Worktable Longitudinal travel
|
mm
|
1500
|
|
Worktable Cross travel
|
mm
|
670
|
|
Vertical travel
|
mm
|
670
|
|
MAIN SPINDLE :
|
|
|
|
Spindle taper
|
|
ISO50 7:24
|
|
Quill travel
|
mm
|
|
|
Spindle speed /step
|
rpm
|
(60HZ)40-1600/12 (50HZ)35-1345/12
|
|
Spindle axis to column surface
|
mm
|
610
|
|
Spindle nose to table surface
|
mm
|
0-670
|
|
FEEDS :
|
|
|
|
X /Y Longitudinal/cross feed
|
mm / min
|
20-1800/stepless
|
|
Z Vertical
|
|
10-900/stepless
|
|
X/Y Longitudinal/cross rapid speed
|
mm / min
|
3500
|
|
Z Rapid Traverse vertical
|
|
1750
|
|
POWER :
|
|
|
|
Main motor
|
kw
|
7.5
|
|
Feed motor
|
kw
|
2
|
|
Elevating motor for headstock
|
Kw
|
2
|
|
Coolant motor
|
kw
|
550
|
|
others
|
|
|
|
Package dimension
|
cm
|
228x228x282
|
|
Overall dimension
|
cm
|
330x238x275
|
|
N/W
|
kg
|
7300/8000
|
