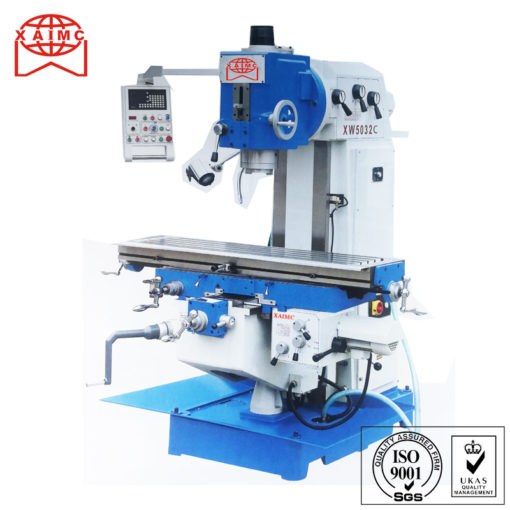

XW5032 Universal vertical milling machine

Universal milling mahine XW5032A,vertical milling machine

1.rectangular table fuideways with high stability

2.Hardened and ground table surface,guideways

3.automatic feeds on x,y axes,motorized lifting and lowering of table on z axis

4.headstock swivels +-35°

Category: Milling

Specification details of XW5032A XW5032B XW5032C Universal knee type milling machine, vertical milling machine

Specifications	Unit	XW5032A	XW50332B	XW5032C
Table size	mm	1320×320	1320×320	1320×320
T slot	no	5	5	5
T Size ( Width )	mm	14	14	14
T Centre distance	mm	63	63	63
Max. load of Table	kg	300	300	300
(X) table Longitudinal travel(manual/auto)	mm	800/750	800/750	1000manual
(Y) table Cross travel (manual/auto)	mm	300	300	300
(Z) table Vertical travel(manual/auto)	mm	400	400	400
Spindle taper		ISO50	iso50	ISO50
quill travel	mm	0	70	70
spindle speed /step	rpm	58-1710/12	58-1710/12	58-1710/12
spindle axis to column surface	mm	320	360	360
spindle nose to table surface	mm	45-445	45-445	45-445
Max.swivel of headstock	degree	±35°	± 35°	± 35°
(X /Y) Longitudinal/cross feed	mm / min	20-360/8	20-360/8	20-360/8
(Z) Vertical/step	mm/min	400	400	400
(X/Y) Longitudinal/cross rapid speed	mm / min	1200	1200	1200
(Z) Rapid Traverse vertical	mm/min	400	400	400
main motor	kW	4	4	4
(X/Y) feed motor for X/Y	kW	0.55	0.55	0.55
elevating motor for Knee	kW	0.75	0.75	0.75
coolant motor	kW	0.09	0.09	0.09
package dimension	cm	187x170x225	187x170x225	207x185x225
overall dimension	cm	177x182x188	177x182x188	202x182x188
N/W,G/W	kg	2300	2300	2300

Accessories

Standard accessories:

Optional accessories suit the univeral milling machine, vertical milling machine

Optional accessories:Rotary table, dividing head,change sleeve,DRO,clamp kit, spindle protection, table protection

Packaging & Shipping

Universal milling machine XW5032A, Vertical milling machine

Package :Plywood case

1set/1plywood case size: 187x170x222cm, weight:2300/2500kgs

2sets/1plywood case size:226x187x222cm,weight:4600/4800kgs

Suitable Container and quantity:

Standard 20′ container: 3 sets

Standard 40′ container: 6 sets

Professional service

Universal milling machine, vertical milling machine XW5032A XW5032B XW5032C

1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. All of the questions will be replied within 24 hours

5. Warranty period: one year

During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.

Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
